Installing Temperature Sensor

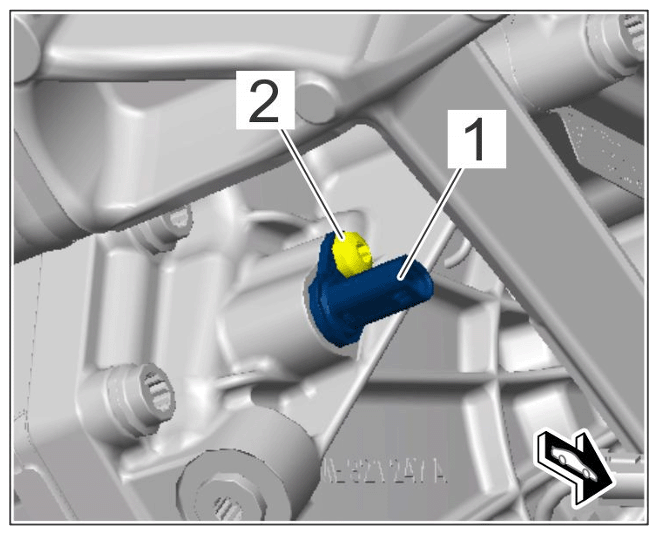

1. Grease O-ring with a light coating of Kluber Syntheso Glep.
2. Install temperature sensor -1-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw for temperature sensor

1. 2.1 Fit and tighten screw -2-  .

   > Tightening torque 8 Nm (4.5 ftlb.)

2. 2.2 Connect cable plug and check that it is seated securely.
