Technical Values

Location	Description	Type	Basic value
Rear power electronics to electric motor		Tightening torque	30 Nm (22 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Installing power electronics
Screws securing automatic transmission to electric motor	Screws, M10 x 45 - Item 1 to 8	Initial tightening	50 Nm (37 ftlb.)

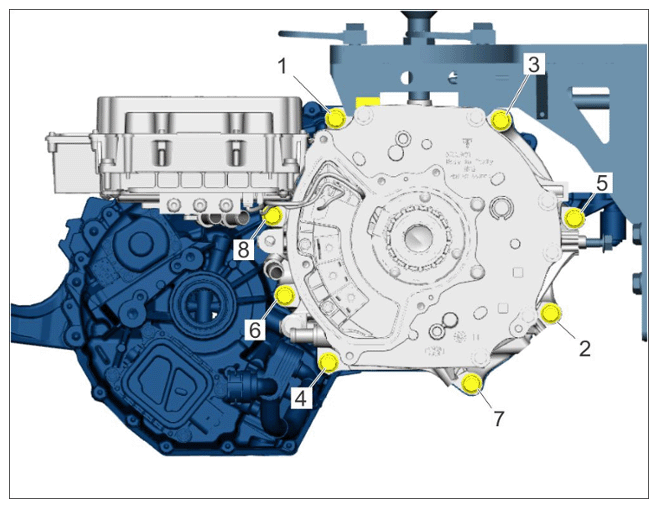

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Flange screws for automatic transmission
Screws securing automatic transmission to electric motor	Screws, M10 x 45 - Item 1 to 8	Torque angle	60 °
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Flange screws for automatic transmission
