Removing Pressure Accumulator

Information

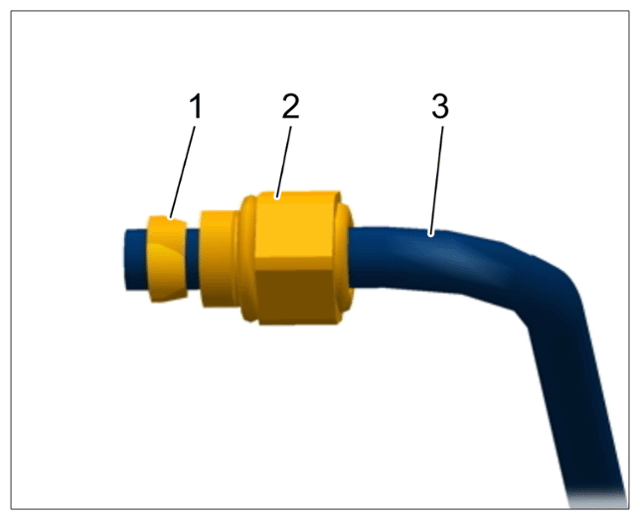

The cutting ring -1-  and Voss threaded joint -2-  must remain on the air line -3-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Air line

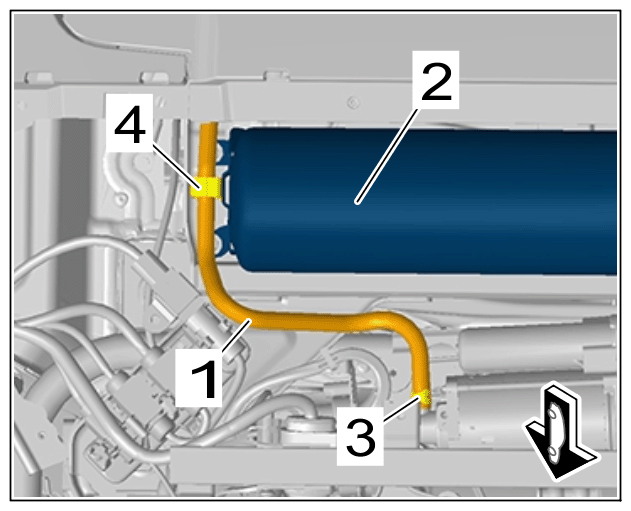

1. Disconnect air line for compressor -1-  from pressure accumulator -2-  .
   1. 1.1 Loosen spring band clamp -3-  using > VAS 6890 - Spring Band Clamp Pliers  and disconnect air line for compressor -1-  .
   2. 1.2 Unclip clip -4-  and move air line for compressor -1-  aside.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Air line for compressor

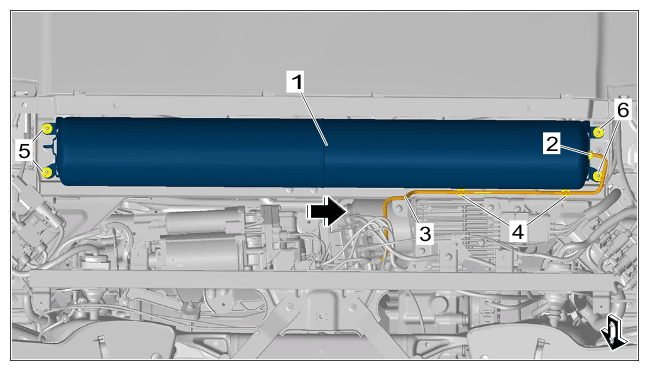

2. Remove pressure accumulator -1-  .
   1. 2.1 Unscrew line connection -2-  and disconnect it from the pressure accumulator -1-  .
   2. 2.2 Unclip line -3-  from clips -4-  .
   3. 2.3 Loosen nuts -5-  by several turns, but do not unscrew them completely.
   4. 2.4 Unscrew nuts -6-  .
   5. 2.5 Pull out pressure accumulator -1-  in direction of -arrow-  and remove it by pulling it downwards.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Pressure accumulator
