Installing Pressure Accumulator

Information

Check the following before installing the air line:

• Check that the cutting ring -1-  and Voss threaded joint -2-  are on the air line -3-  (not relevant if the component was replaced and the Voss threaded joint that is pre-fitted on the component is used).
• Check that the air line is fitted correctly.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Check: Air line connection

Only one marking -1-  on the air line should be visible.

Pull the air line briefly against the insertion direction. If it cannot be pulled out, the air line is fitted correctly.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Check: Air line fitted correctly

1. Install pressure accumulator -1-  .
   1. 1.1 Insert pressure accumulator -1-  in direction of -arrow-  .
   2. 1.2 Fit nuts -6-  .
   3. 1.3 Tighten nuts -5-  .

      > Tightening torque 8 Nm (6 ftlb.)

   4. 1.4 Tighten nuts -6-  .

      > Tightening torque 8 Nm (6 ftlb.)

   5. 1.5 Clip line -3-  into clips -4-  .
   6. 1.6 Fit and tighten line connection -2-  .

      > Tightening torque 3.5 Nm (2.6 ftlb.)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

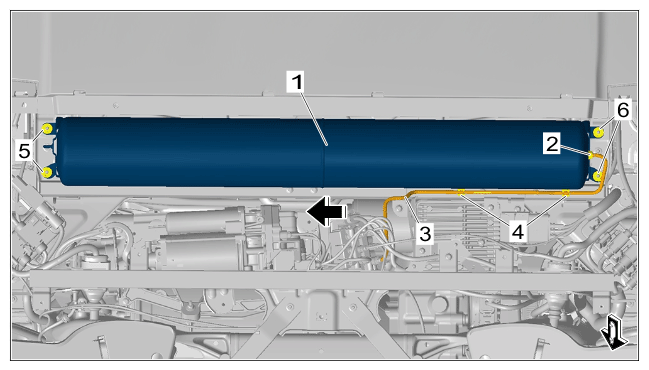

   Pressure accumulator

2. Connect air line for compressor -1-  to pressure accumulator -2-  .
   1. 2.1 Push on air line for compressor -1-  and secure spring band clamp -3-  using > VAS 6890 - Spring Band Clamp Pliers  .
   2. 2.2 Clip in clip -4-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

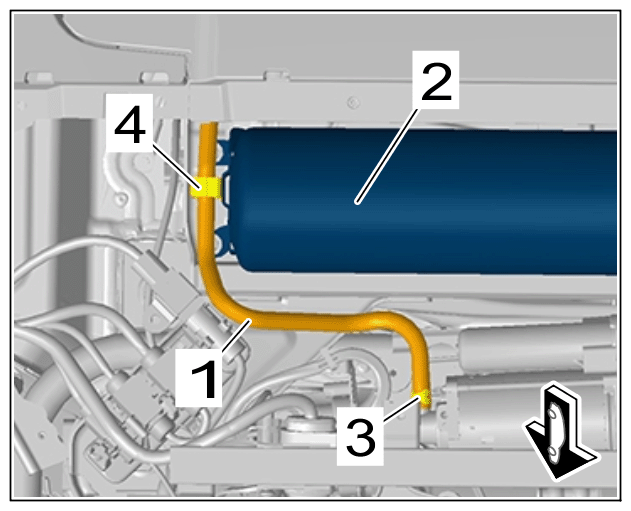

   Air line for compressor
