Installing Compressor

Information

You will need a second mechanic to help you with this step.

1. Install compressor -1-  with holder -2-  .
   1. 1.1 Connect and lock electric plug connections -4-  on control unit -5-  and position compressor -1-  with holder -2-  .
   2. 1.2 Fit and tighten nuts -3-  .

      > Tightening torque 8 Nm (6 ftlb.)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Compressor with holder

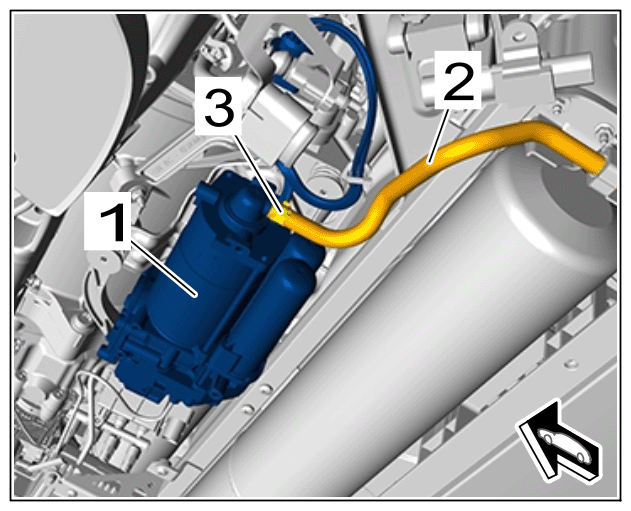

2. Secure suction line -2-  on compressor -1-  .
   1. 2.1 Connect suction line -2-  and fit spring band clamp -3-  using > VAS 6890 - spring band clamp pliers  .

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Suction line for compressor

   Information

   Check the following before installing the air line:

   • Check that the cutting ring -1-  and Voss threaded joint -2-  are still on the air line -3-  .
   • Check that the air line is fitted correctly.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Checking air line

   Only one marking -1-  on the air line should be visible.

   Pull the air line briefly against the insertion direction. If it cannot be pulled out, the air line is fitted correctly.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Checking that air line is fitted correctly

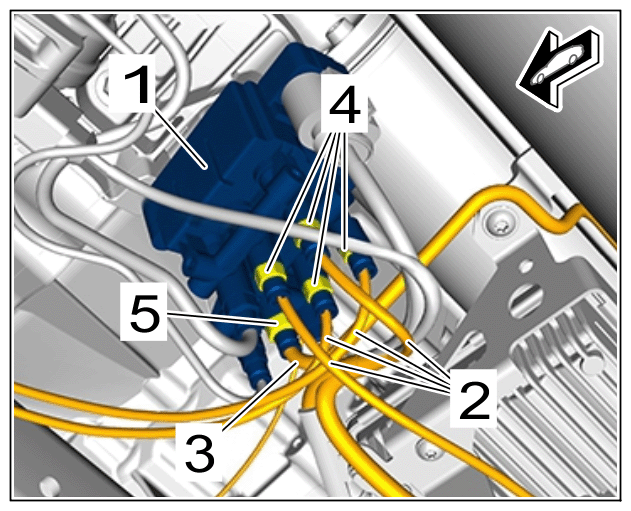

3. Install air lines -2 and 3-  on valve unit -1-  and check the allocation of the air lines -2 and 3-  according to the markings on the valve unit -1-  .
   1. 3.1 Connect air lines -2-  and tighten Voss threaded joints -4-  .

      > Tightening torque 2.3 Nm (1.7 ftlb.)

   2. 3.2 Connect air line -3-  and tighten Voss threaded joint -5-  .

   > Tightening torque 3.5 Nm (2.6 ftlb.)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Air lines on valve unit

4. Connect and lock electric plug connections -1 and 2-  on valve unit -3-  and compressor -4-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connections for valve unit and pressure accumulator
