Technical Values

Location	Description	Type	Basic value
Screw securing refrigerant line to expansion valve (EXV2)/chiller	Item 2	Tightening torque	8 Nm (5.9 ftlb.)
Screw securing refrigerant line to expansion valve (EXV2)	Item 4	Tightening torque	8 Nm (6 ftlb.)
Screw securing expansion valve to holder		Tightening torque	8 Nm (6 ftlb.)
Fastening nut for bulkhead	-1-	Tightening torque	8 Nm (6 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Bulkhead
Fastening screw for bulkhead	-2-	Tightening torque	8 Nm (6 ftlb.)

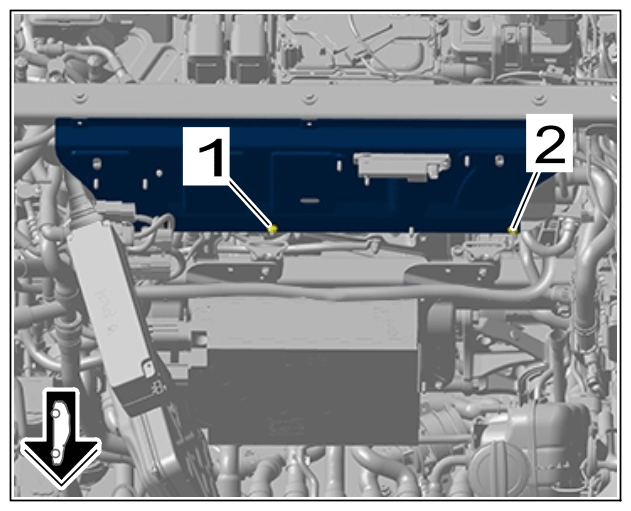

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing bulkhead
