WM, 882319 Removing And Installing Heat EXCHANGER (ICOND)
>>
Installation Position
Installation Position

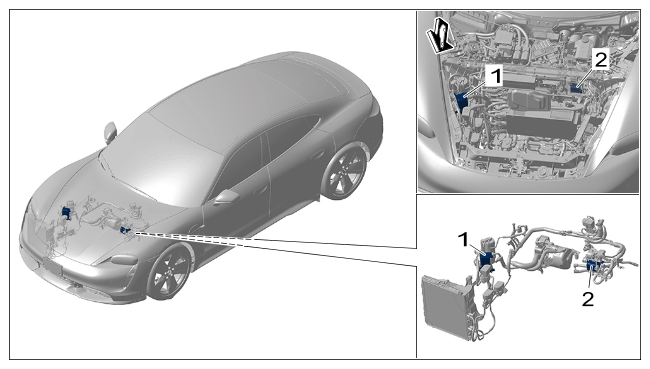

Fig 1: Heat Exchanger Components Location (ICond)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Installation position
1
Heat exchanger (Icond)
2
Evaporator (chiller)
