Remove Rear Air Conditioning Control

NOTE: NOTIFICATION
Voltage peaks
  • Risk of damage to electrical load or to the control unit

    → Switch off ignition and keep transmitter key outside of the transmission range (at least 5 m).

    → Switch off electrical loads before disconnecting or removing them.

  1. Move front seats all the way forward.
    NOTE: NOTIFICATION
    Levers on the rear air conditioning control
    • Damage to air conditioning control

      → Only loosen the air conditioning control at the clips.

  2. Remove rear air conditioning control -1-  .
    1. 2.1  Loosen rear air conditioning control -1-  from clips -2-  .
      1. 2.1.1  Release clips -2-  from the inside using a suitable tool.
    2. 2.2  Release and disconnect electric plug connections -3-  .
    3. 2.3  Remove rear air conditioning control -1-  .

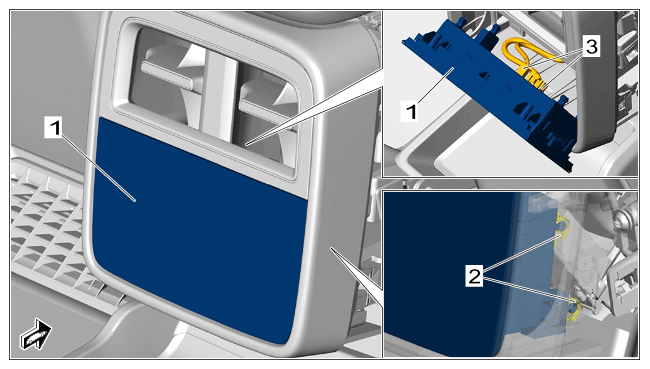

      G15565962Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Rear air conditioning control
