Subsequent Work

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2023 Porsche Panamera, 2022 Porsche Panamera, 2021 Porsche Panamera, 2020 Porsche Panamera, and 2019 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

For heat shield on centre tunnel:
Install exhaust system.

> 260119 REMOVING AND INSTALLING EXHAUST SYSTEM
For heat shield on rear bumper:
Install rear apron.

> WM, 635519 REMOVING AND INSTALLING REAR APRON (Coupe) , WM, 635519 REMOVING AND INSTALLING REAR APRON (Wagon)

For heat shield on rear silencer:

3.1 Install heat insulation at the centre, in luggage compartment pan -1- .
1. 3.1.1 Move heat insulation at the centre, in luggage compartment pan -1- into installation position.
2. 3.1.2 Fit and tighten screws -2- and nuts -3- .
  Screws -2- : > Tightening torque 2.5 Nm (1.75 ftlb.)

  Nuts -3- : > Tightening torque 2.5 Nm (1.75 ftlb.)

3.2 Install exhaust system.

> 260119 REMOVING AND INSTALLING EXHAUST SYSTEM

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

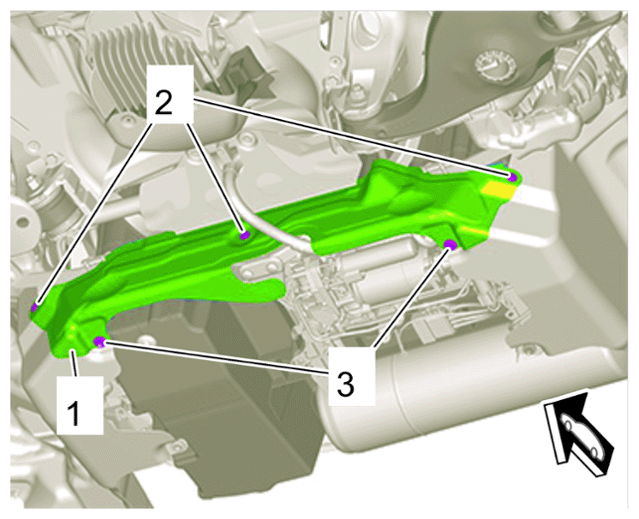

Heat insulation at the centre, in luggage compartment pan
