Installing Trailer Hitch

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2023 Porsche Panamera, 2022 Porsche Panamera, 2021 Porsche Panamera, 2020 Porsche Panamera, and 2019 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Information

Some of the steps are shown only on one side of the vehicle. Complete the steps on both sides of the vehicle.

Installation is performed in reverse order.
Screw in new screws -1- at the left and right and tighten in the tightening sequence -1-8- .
> Initial tightening 50 Nm (37 ftlb.)

> Final tightening + 120°

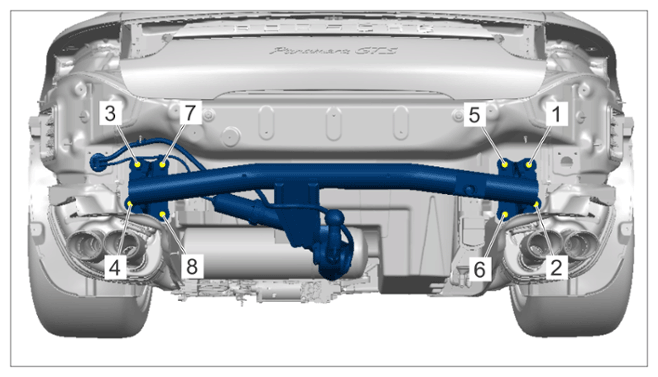

Fig 1: Trailer Hitch Screws Tightening Sequence
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tightening sequence

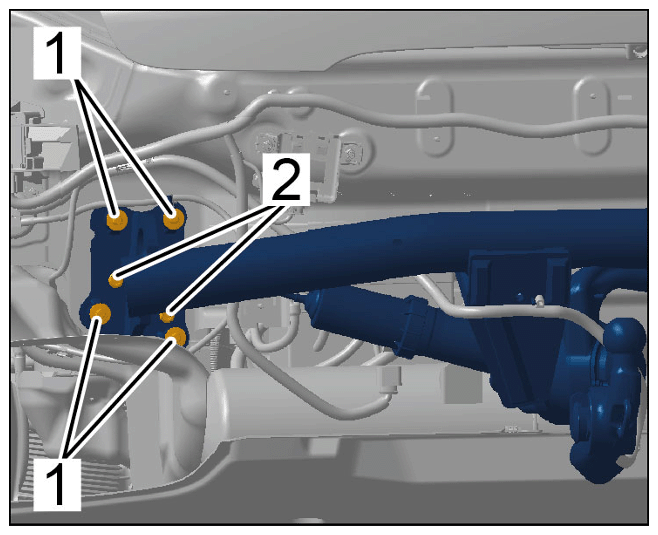

Screw in and tighten new screws -2- .

> Initial tightening 16 Nm (12 ftlb.)

> Final tightening + 90°

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screwing in and tightening screws
