Removing Rear-View Mirror

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2023 Porsche Panamera, 2022 Porsche Panamera, 2021 Porsche Panamera, 2020 Porsche Panamera, and 2019 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

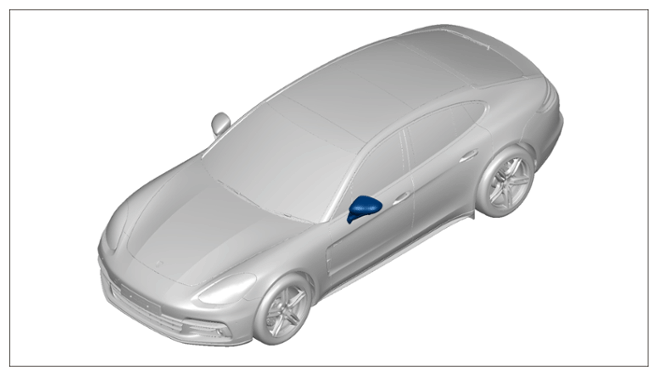

Installation position of rear-view mirror

Release the plug connection -a- and pull it off -A- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

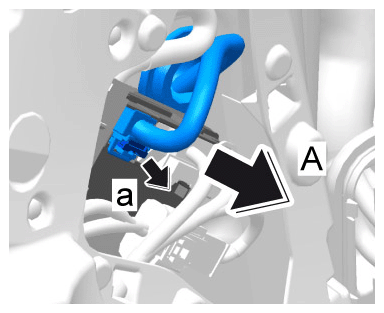

Releasing plug connection

Information

The adhesive pad cannot be pulled off without damaging it and must always be replaced.
Pull off adhesive pad -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

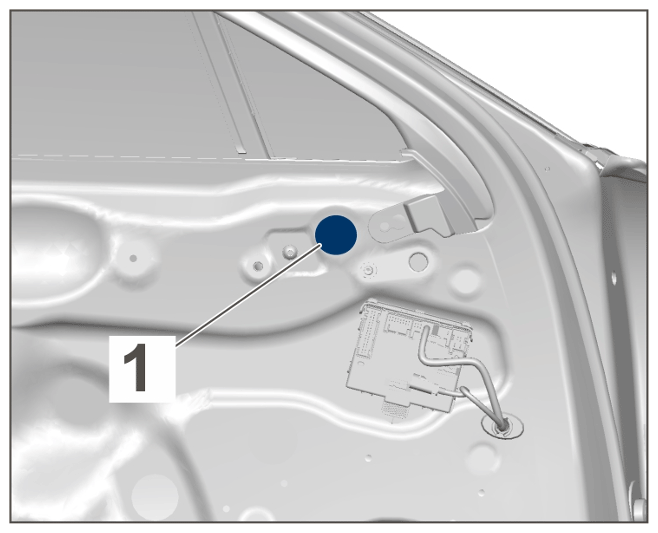

Adhesive pad
Unscrew fastening screw -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

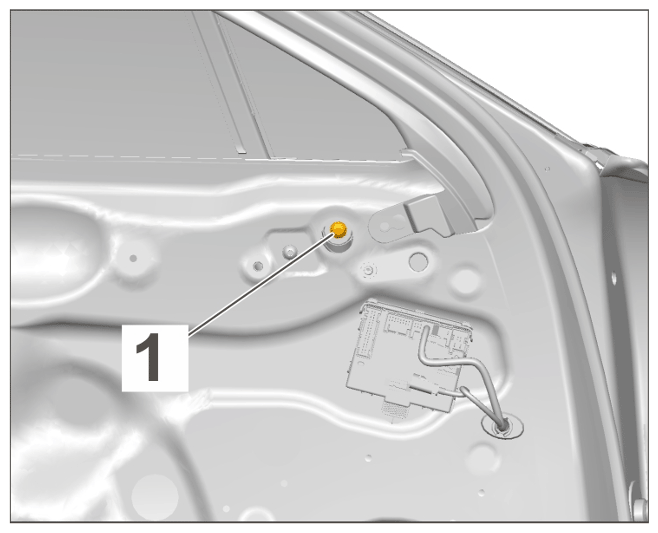

Fastening screw
Remove rear-view mirror.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

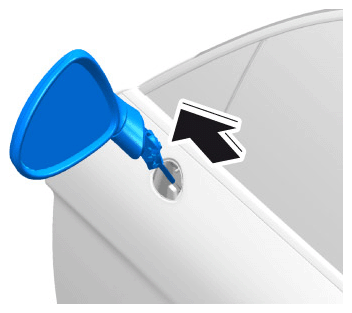

Removing rear-view mirror

4.1 Tie cord to the plug connection.
4.2 Pull up rear-view mirror. -arrow-
4.3 Pull wire harness out of the door.
4.4 Detach the cord (remains in the door).
