Removing Rear-View Mirror Housing (Upper Part)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2023 Porsche Panamera, 2022 Porsche Panamera, 2021 Porsche Panamera, 2020 Porsche Panamera, and 2019 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

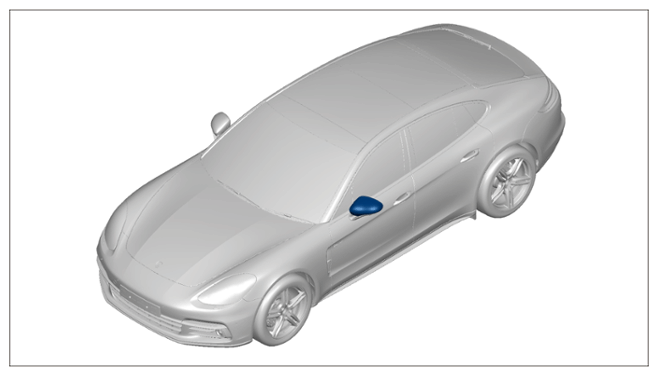

G15865088Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installation position of rear-view mirror housing (upper part)

  1. Unscrew fastening screws -1-  .

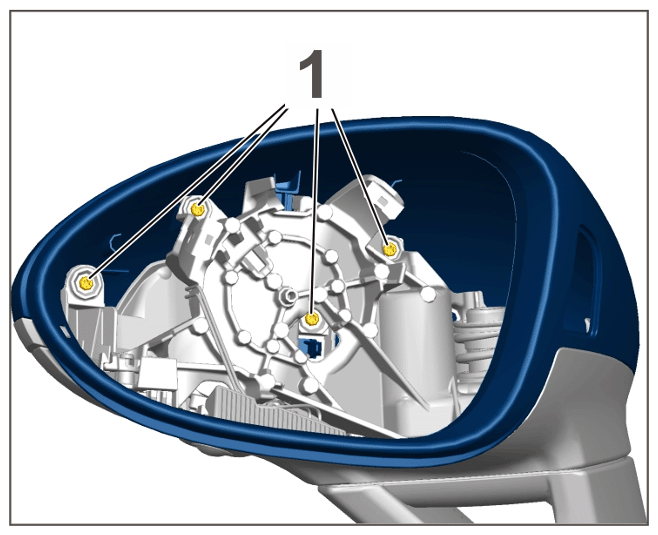

    G15865089Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Fastening screws

  2. Loosen locking lugs -1-  and remove rear-view mirror housing (upper part).

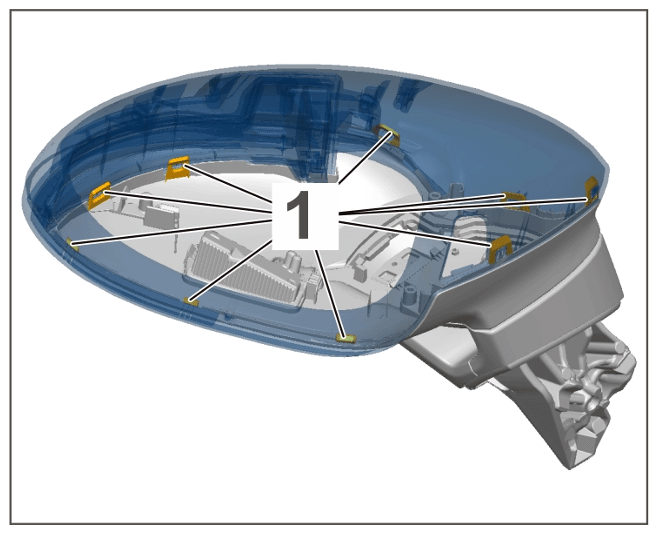

G15865090Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Locking lugs
