Removing Rear-View Mirror Housing (Lower Part)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2023 Porsche Panamera, 2022 Porsche Panamera, 2021 Porsche Panamera, 2020 Porsche Panamera, and 2019 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

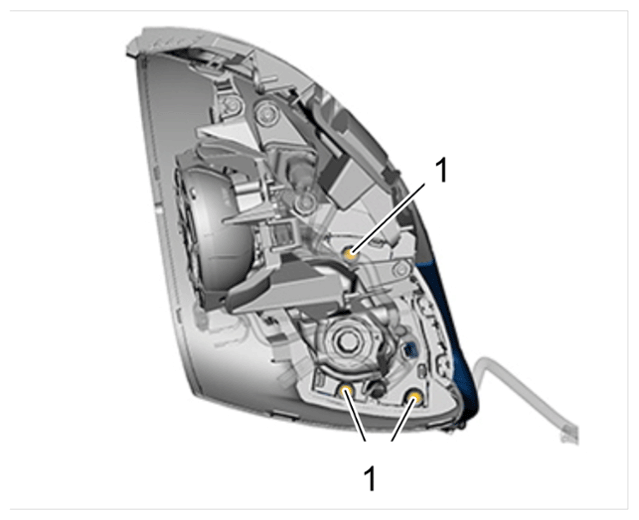

Unscrew and remove screws -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws on trim panel for mirror base

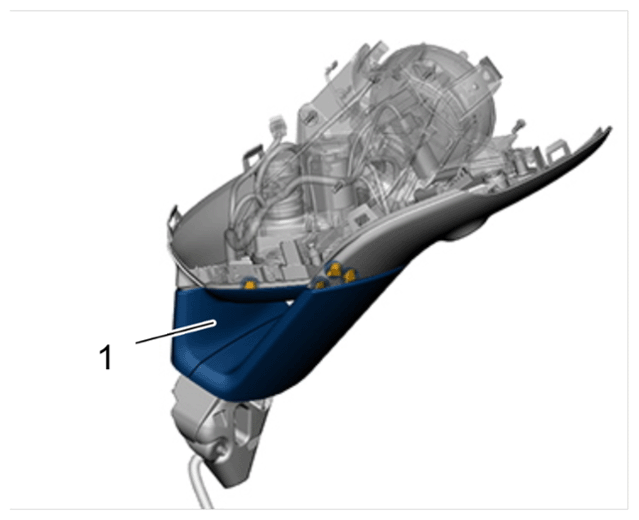

Unclip trim panel for mirror base -1- and remove it in a downward direction.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Trim panel for mirror base

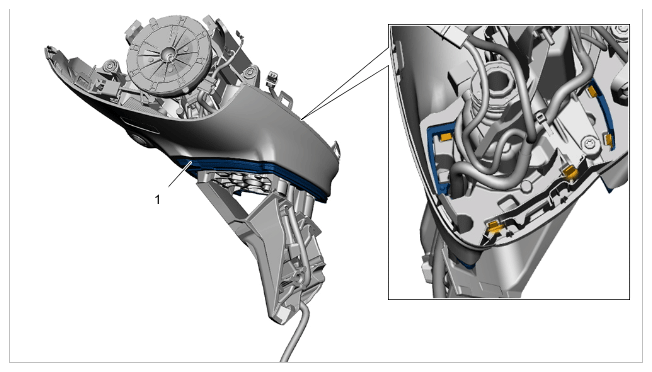

Unclip joint gap seal -1- from mirror base.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Joint gap seal on mirror base

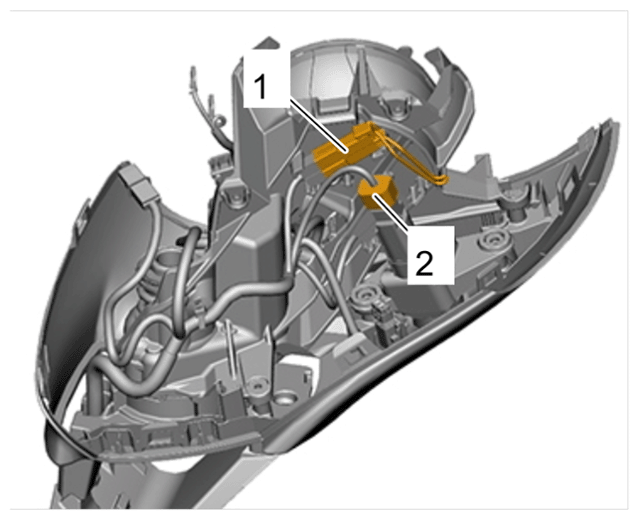

Release and disconnect electric plug connections -1 and 2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connections

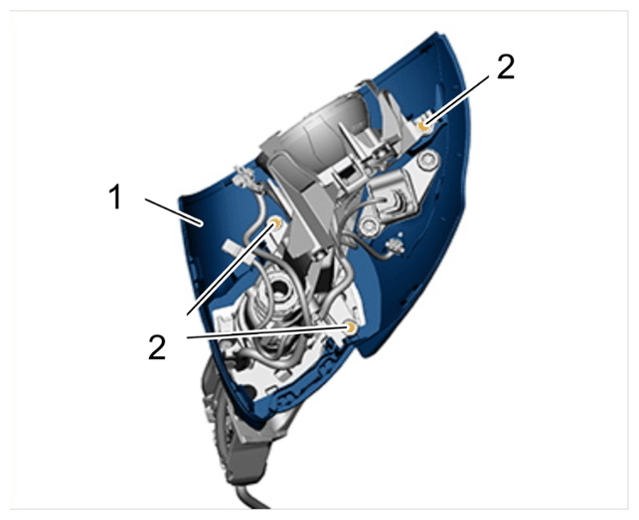

Remove rear-view mirror housing (lower part) -1- .
1. 5.1 Unscrew and remove screws -2- .
2. 5.2 Remove rear-view mirror housing (lower part) -1- by pulling it downwards.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws on rear-view mirror housing (lower part)
