Removing Mirror Glass
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2023 Porsche Panamera, 2022 Porsche Panamera, 2021 Porsche Panamera, 2020 Porsche Panamera, and 2019 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.
- Press the outside of the mirror glass inwards -A-
and carefully pull it out on the inside -B-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Removing mirror glass
- Unclip plug connection -3-
from the bracket -2-
(-A-
).
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

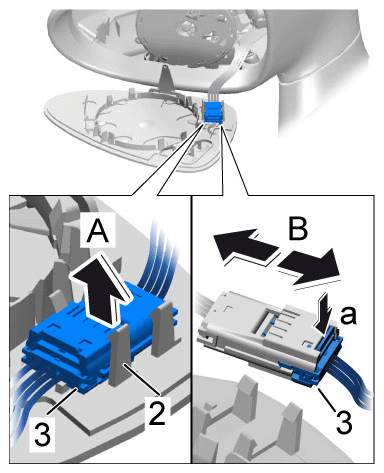

Disconnecting plug connection
- Release plug connection -3-
(-a-
) and disconnect it -B-
.
