Removing Control Unit For Rear Spoiler

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2023 Porsche Panamera, 2022 Porsche Panamera, 2021 Porsche Panamera, 2020 Porsche Panamera, and 2019 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

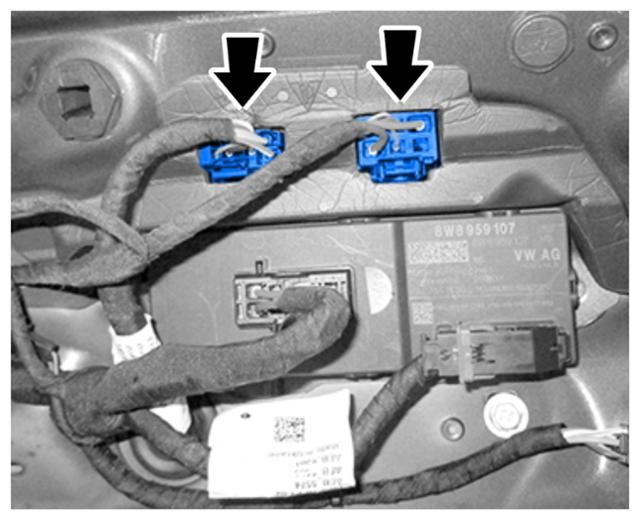

Release and disconnect electric connections.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric connections

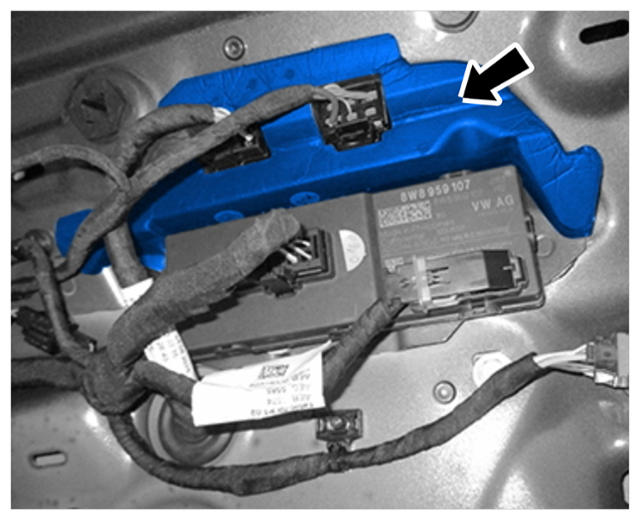

Remove foam box.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Foam box

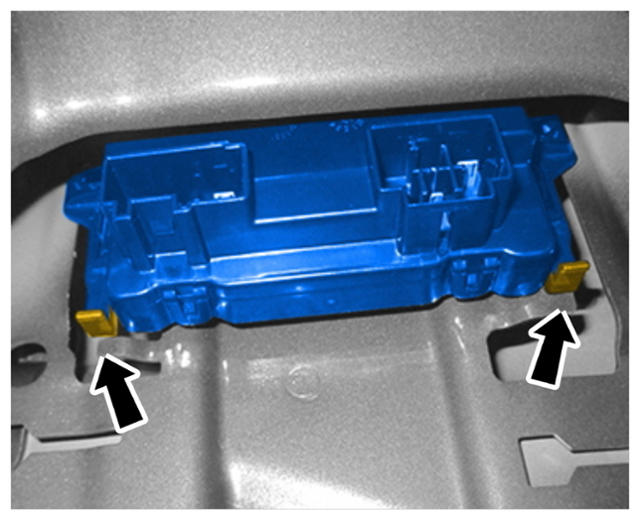

Unclip control unit from holder and remove it.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unclipping control unit
