Removing Spoiler Drive

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2023 Porsche Panamera, 2022 Porsche Panamera, 2021 Porsche Panamera, 2020 Porsche Panamera, and 2019 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

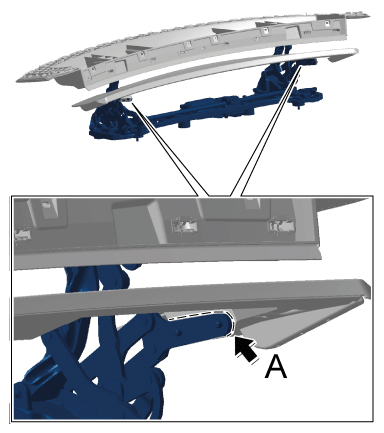

Mark installation position of closing element of rear spoiler -arrow A- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Marking closing element of rear spoiler

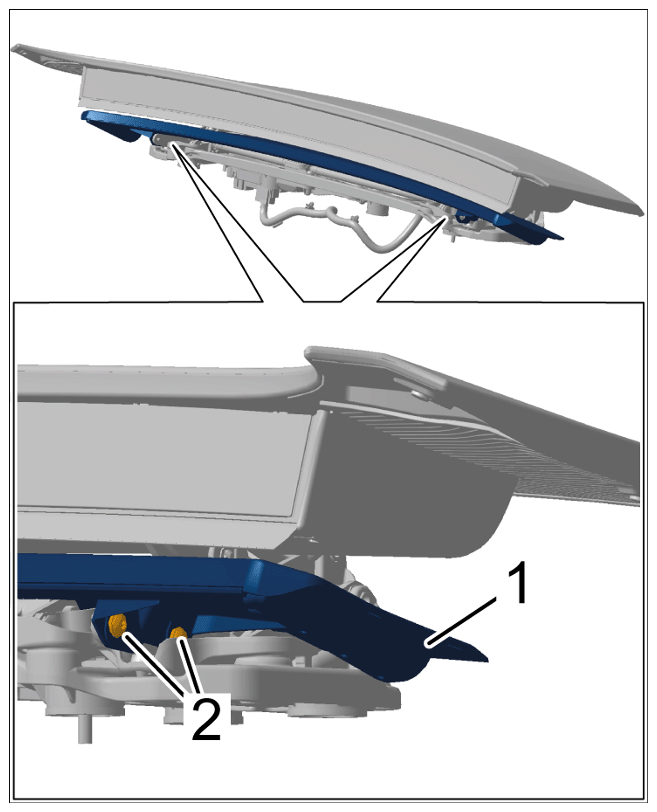

Remove closing element of rear spoiler -1- .
1. 2.1 Unscrew screws -2- on both spoiler drives.
2. 2.2 Remove closing element of rear spoiler -1- .
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing closing element of rear spoiler

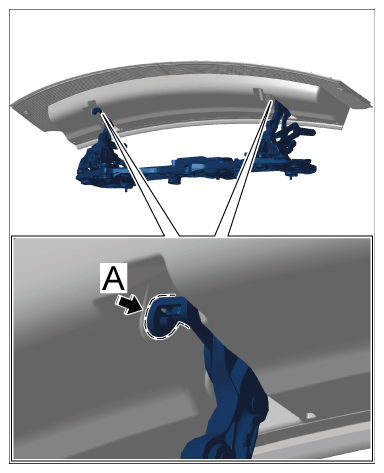

Mark installation position of lower part of spoiler -arrow A- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Marking lower part of spoiler

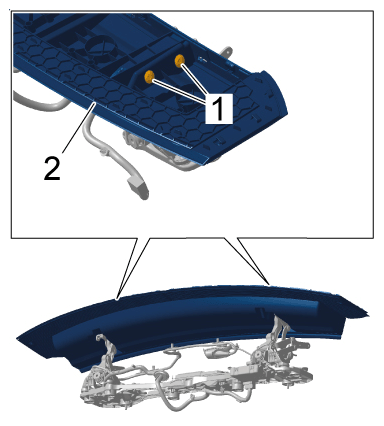

Unscrew screws -1- and remove lower part of spoiler -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unscrewing screws
