Installing Spoiler Drive

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2023 Porsche Panamera, 2022 Porsche Panamera, 2021 Porsche Panamera, 2020 Porsche Panamera, and 2019 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

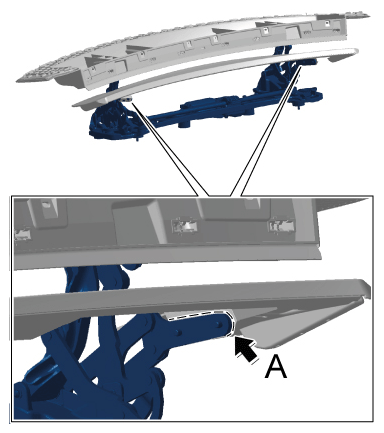

Position lower part of spoiler in installation position with respect to the marking -arrow A- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Positioning lower part of spoiler

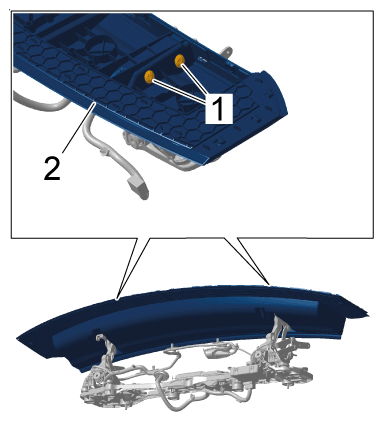

Screw in and tighten screws -1- on lower part of spoiler -2- > Tightening torque 5.6 Nm (4.1 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screwing in and tightening screws

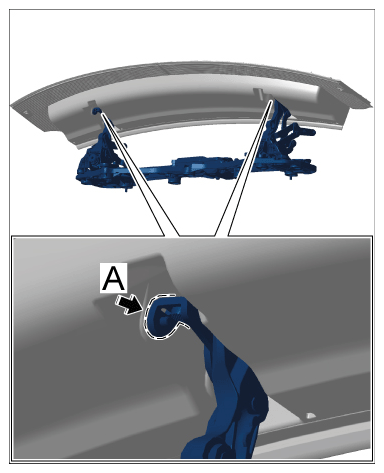

Position closing element of rear spoiler in installation position with respect to the marking -arrow A- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Positioning closing element of rear spoiler

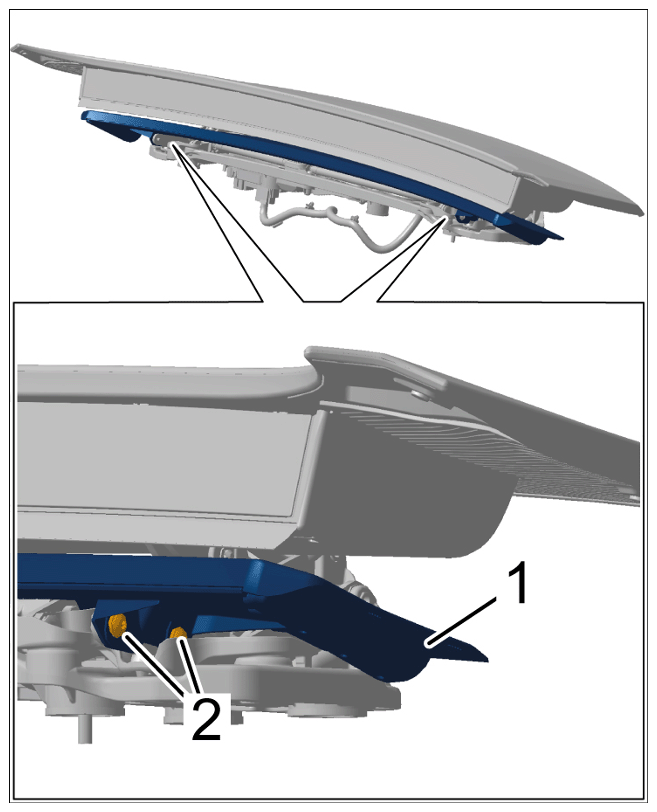

Screw in and tighten screws -2- on both spoiler drives > Tightening torque 4.5 Nm (3.3 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screwing in and tightening screws
