Technical Values
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2023 Porsche Panamera, 2022 Porsche Panamera, 2021 Porsche Panamera, 2020 Porsche Panamera, and 2019 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.
| Location | Des... | Type | Basic val... | Toleranc... | Toleranc... |
|---|---|---|---|---|---|
| Screws securing rear spoiler closing element to spoiler drive | Item 2 | Tightening torque | 4.5 Nm (3.3 ftlb.) | ||
|

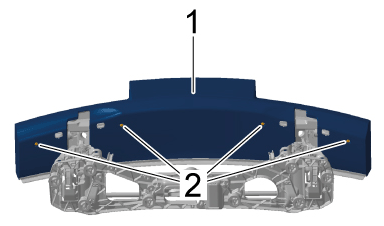

Screws securing rear spoiler closing element to bracket |
|||||
| Screw securing trim to lower part of spoiler (wing) | Item 2 | Tightening torque | 1.3 Nm (1 ftlb.) | ||
|

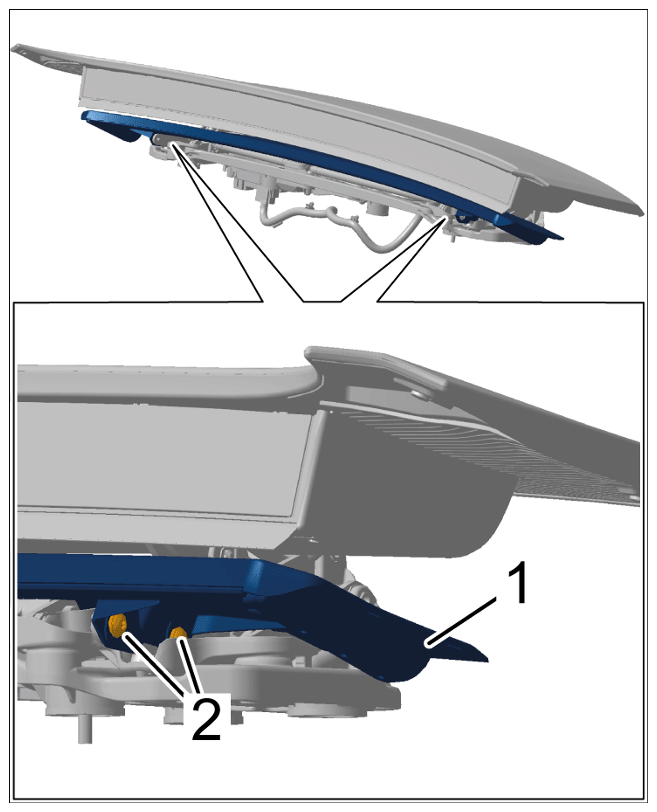

Screws securing trim to lower part of spoiler (wing) |
|||||
