Subsequent Work

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2023 Porsche Panamera, 2022 Porsche Panamera, 2021 Porsche Panamera, 2020 Porsche Panamera, and 2019 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Information

The steps are described only for the left-hand side of the vehicle. Complete some steps on both sides of the vehicle.

Clip in trim on lower part of spoiler -1- (-arrow- ).

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installing trim on lower part of spoiler
Screw in and tighten screws -2- on trim for lower part of spoiler -1- > Tightening torque 1.3 Nm (1 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screwing in and tightening screws on trim for lower part of spoiler
Install closing element of rear spoiler (wing) -1- according to the markings applied earlier -A- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

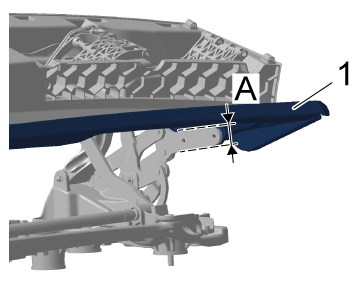

Installing closing element of rear spoiler (wing)
Screw in and tighten screws -2- on both spoiler drives -1- > Tightening torque 4.5 Nm (3.3 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

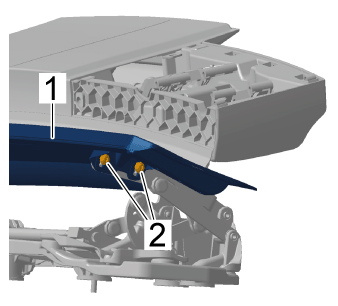

Installing closing element of rear spoiler (wing)
Install centre rear spoiler trim.
> WM, 66581905 REMOVING AND INSTALLING REAR SPOILER TRIM
Install rear spoiler.
> 66581900 REMOVING AND INSTALLING REAR SPOILER
