Preliminary Work

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2023 Porsche Panamera, 2022 Porsche Panamera, 2021 Porsche Panamera, 2020 Porsche Panamera, and 2019 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Information

The steps are described only for the left-hand side of the vehicle. Complete some steps on both sides of the vehicle.

Remove rear spoiler (wing).
> 66581900 REMOVING AND INSTALLING REAR SPOILER
Remove centre rear spoiler trim.
> WM, 66581905 REMOVING AND INSTALLING REAR SPOILER TRIM

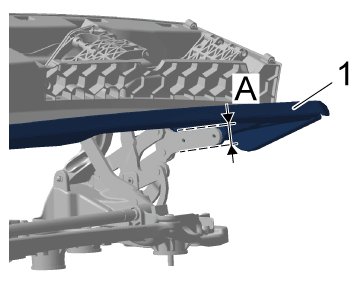

Mark installation position of closing element of rear spoiler (wing) -1- (-A- ).

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Marking installation position of closing element of rear spoiler (wing)

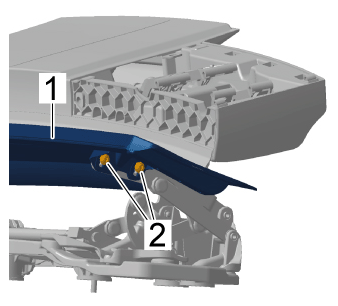

Remove closing element of rear spoiler (wing) -1- .
1. 4.1 Unscrew screws -2- on spoiler drive.
2. 4.2 Remove closing element of rear spoiler (wing) -1- .
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing closing element of rear spoiler (wing)

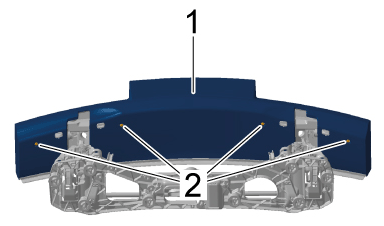

Unscrew screws -2- on trim for lower part of spoiler -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unscrewing screws on trim for lower part of spoiler

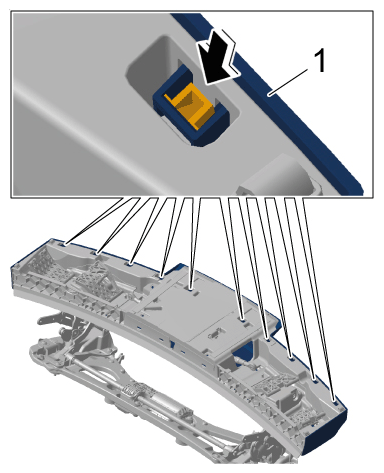

Remove trim on lower part of spoiler -1- .
1. 6.1 Unclip trim on lower part of spoiler -1- (-arrow- ).
2. 6.2 Remove trim on lower part of spoiler -1- from lower part of spoiler by pulling it to the rear.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing trim on lower part of spoiler
