Technical Values
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2023 Porsche Panamera, 2022 Porsche Panamera, 2021 Porsche Panamera, 2020 Porsche Panamera, and 2019 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.
| Location | Des... | Type | Basic val... | Toleranc... | Toleranc... |
|---|---|---|---|---|---|
| Screw on trailer hitch housing | Item 1 | Tightening torque | 5 Nm (3.5 ftlb.) | ||
|

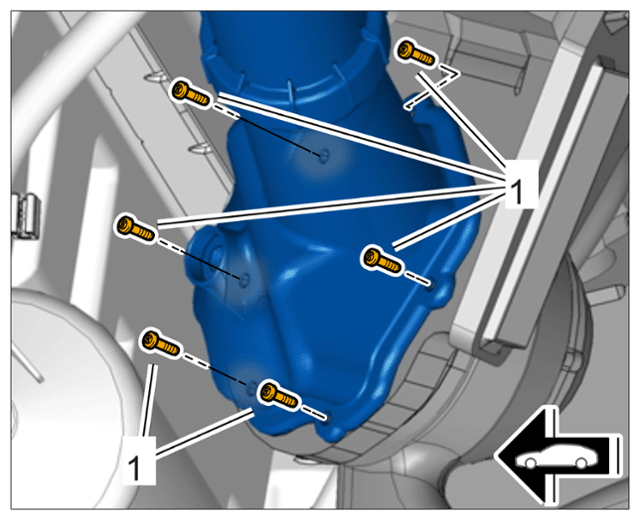

Screws on trailer hitch housing |
|||||
| Nut on trailer hitch bevel gear bolt | Tightening torque | 6 Nm (4.5 ftlb.) | |||
|

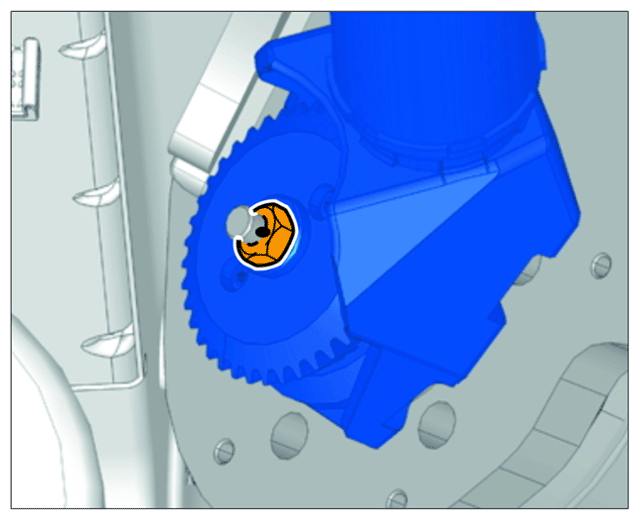

Nut on trailer hitch bevel gear bolt |
|||||
| Screw on trailer hitch motor | Item 1 | Tightening torque | 3 Nm (2 ftlb.) | ||
|

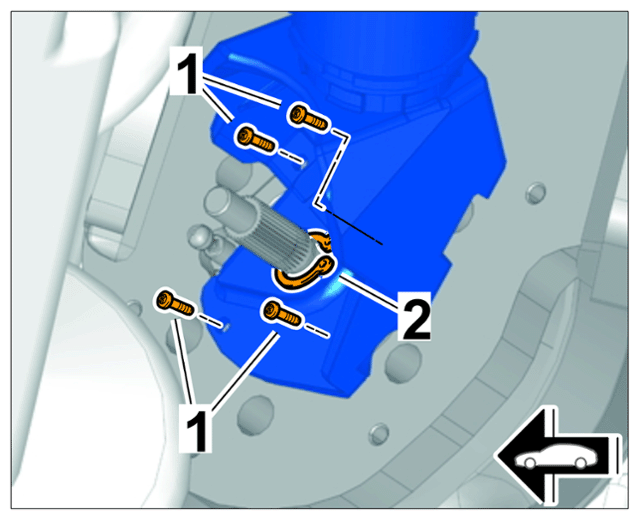

Screwing off motor |
|||||
