Installing Trailer Hitch Motor

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2023 Porsche Panamera, 2022 Porsche Panamera, 2021 Porsche Panamera, 2020 Porsche Panamera, and 2019 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

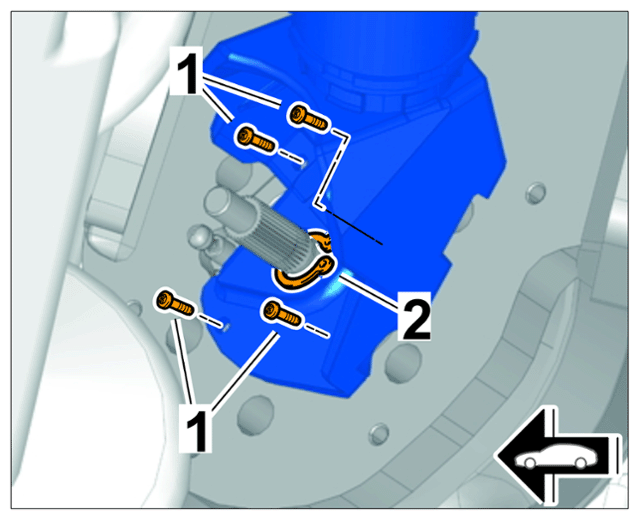

Secure trailer hitch motor.
1. 1.1 Position trailer hitch motor.
2. 1.2 Screw in and tighten screws -1- > Tightening torque 3 Nm (2 ftlb.)
  Information

  Check circlip and replace it if necessary.
3. 1.3 Fit circlip -2- .
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tightening trailer hitch motor

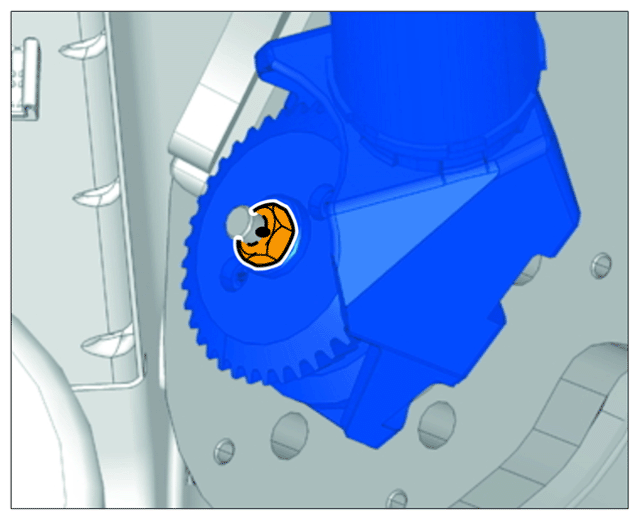

Install new bevel gear.
1. 2.1 Align the bevel gear in such a way that screws and markings are aligned.
2. 2.2 Screw in and tighten nut > Screwing in and tightening nut > Tightening torque 6 Nm (4.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screwing in and tightening nut
Install lower trailer hitch housing section.

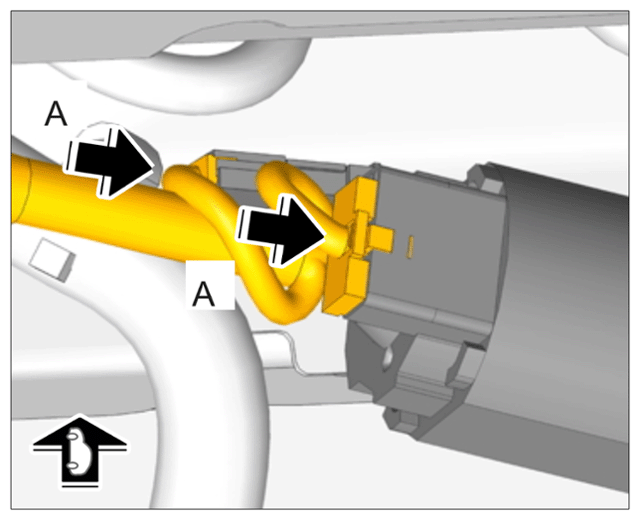

Plug in electric plug connections on the trailer hitch motor -arrows A- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Connecting electric plug connections

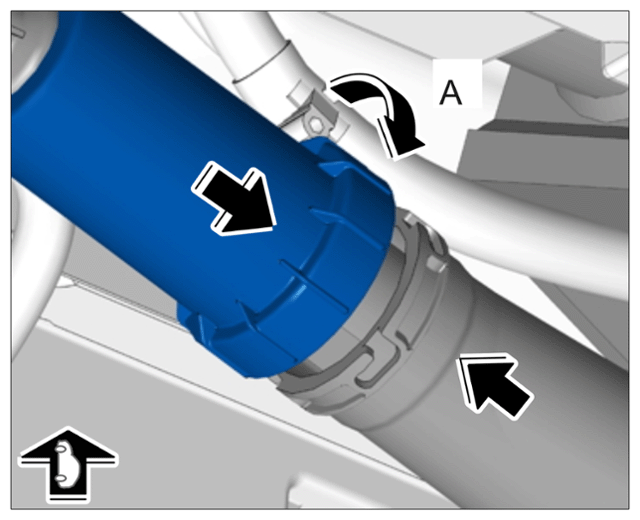

Push the trailer hitch housing together -Arrows- and turn -arrow A- to lock it.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Locking trailer hitch housing

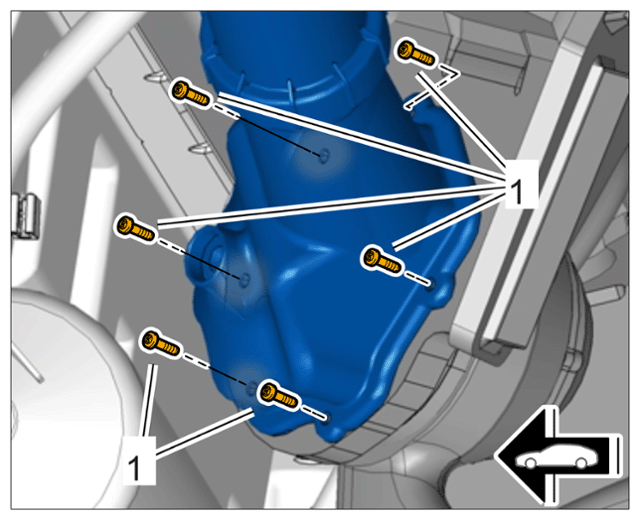

Screw in and tighten screws -1- on the trailer hitch housing > Tightening torque 5 Nm (3.5 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screwing in and tightening screws
