Replacing Rear Spoiler Seal: Notes
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2023 Porsche Panamera, 2022 Porsche Panamera, 2021 Porsche Panamera, 2020 Porsche Panamera, and 2019 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

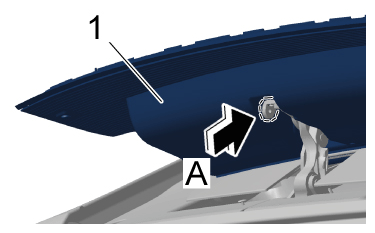

- Mark installation position of lower part of spoiler -1-
(-arrow A-
).
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Marking installation position of lower part of spoiler

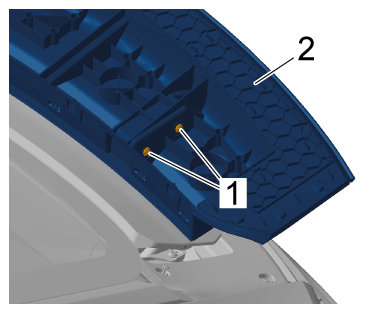

- Unscrew screws -1-
and remove lower part of spoiler -2-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Unscrewing screws

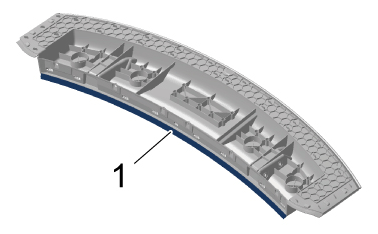

- Pull off seal on rear spoiler -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Pulling off seal
