Removing Rear Spoiler (Wing)
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2023 Porsche Panamera, 2022 Porsche Panamera, 2021 Porsche Panamera, 2020 Porsche Panamera, and 2019 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

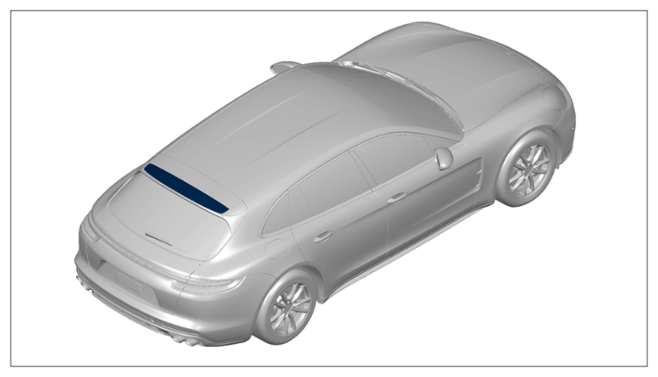

Installation position of rear spoiler (wing)
- Extend rear spoiler fully using PIWIS Tester III
.
- Mark position of rear spoiler (wing) -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

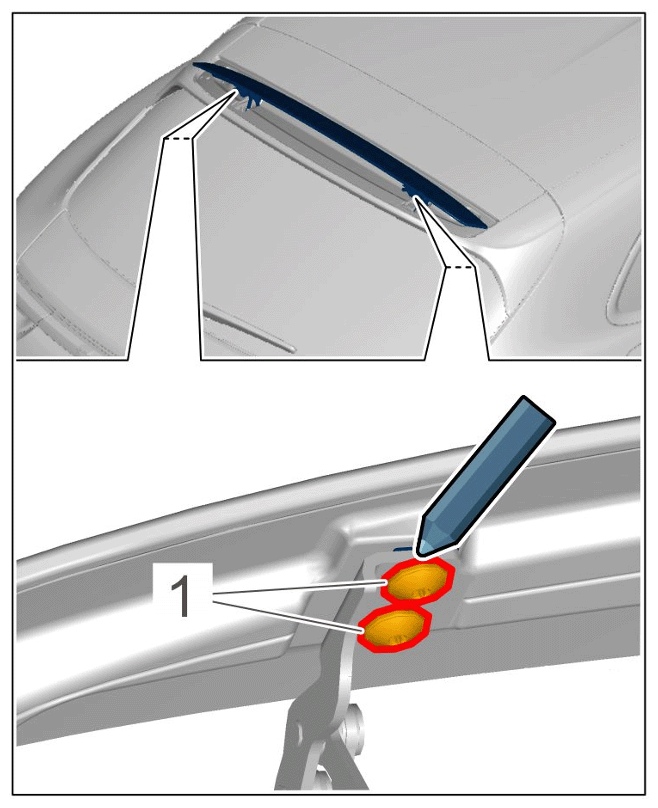

Rear spoiler (wing) position
- Loosen screws -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

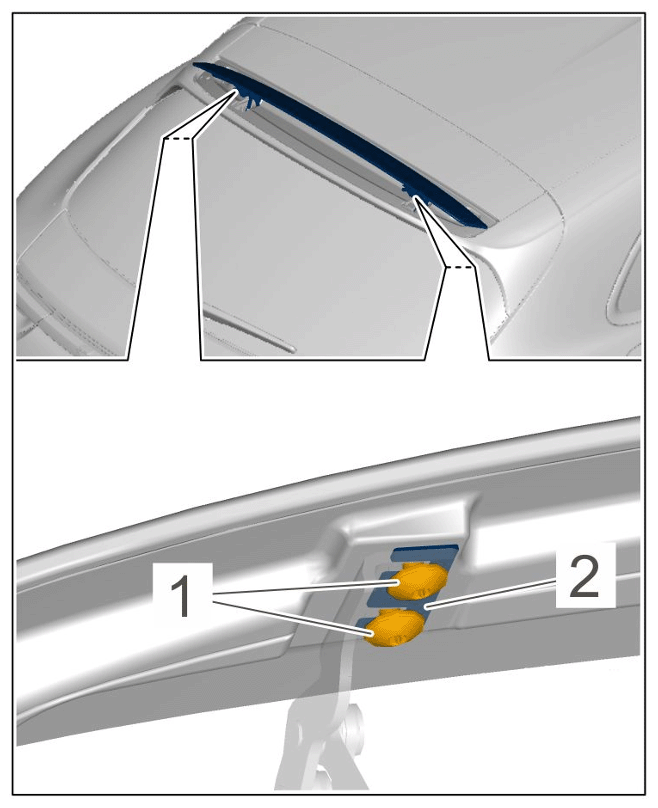

Rear spoiler (wing)
- Remove shims -2-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Rear spoiler (wing)
- Unscrew and remove screws -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Rear spoiler (wing)
- Remove rear spoiler (wing).
