Removing Rear Spoiler Trim

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2023 Porsche Panamera, 2022 Porsche Panamera, 2021 Porsche Panamera, 2020 Porsche Panamera, and 2019 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Electrically moved components

Danger of limbs being trapped or severed
→ Switch off electric power to drive motor.

→ Make sure it does not switch on again.

→ Check that there is no electric charge.

Extend rear spoiler using > 9900 - PIWIS Tester 3 .
Switch off ignition and remove remote control (hand-held transmitter).

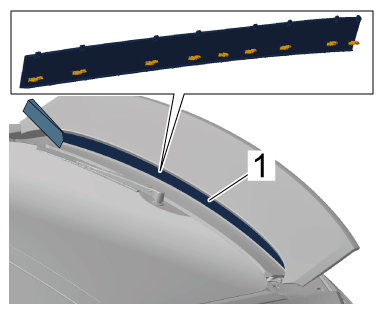

Unclip rear spoiler trim -1- , starting at the side, using a plastic wedge.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unclipping rear spoiler trim

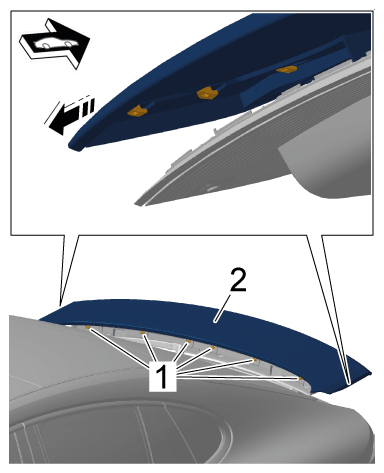

Unscrew screws -1- and unclip rear spoiler trim -2- by pulling it to the rear -arrow- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing rear spoiler trim
