Removing Rear Spoiler

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2023 Porsche Panamera, 2022 Porsche Panamera, 2021 Porsche Panamera, 2020 Porsche Panamera, and 2019 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Electrically moved components

Danger of limbs being trapped or severed
→ Switch off electric power to drive motor.

→ Make sure it does not switch on again.

→ Check that there is no electric charge.

Switch off ignition and remove remote control.

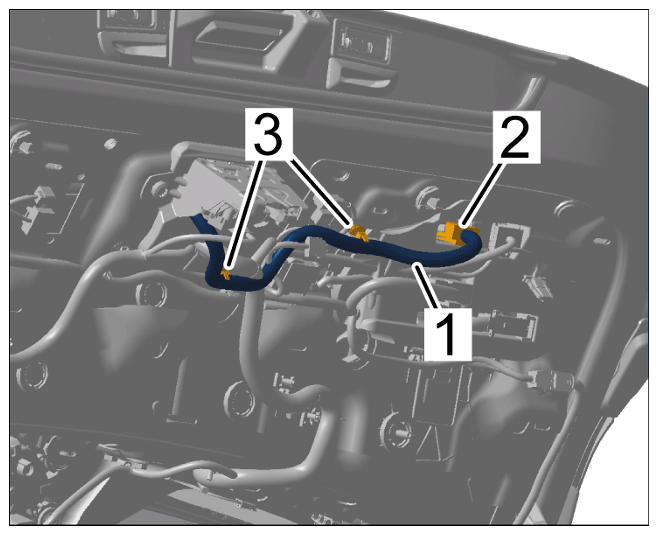

Disconnect wire harness -1- .
1. 2.1 Release and disconnect electric plug connection -2- .
2. 2.2 Lever off retaining clips -3- .
3. 2.3 Press wire harness grommet -1- through the tailgate.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Loosening wire harness

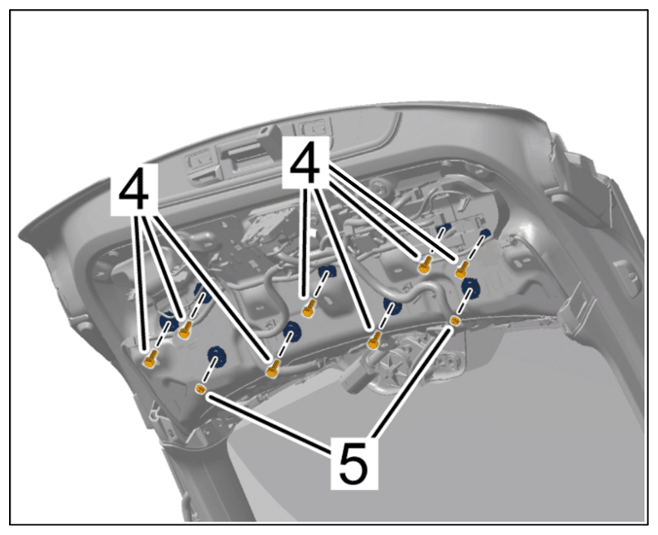

Loosen rear spoiler.
1. 3.1 Unscrew and remove screws -4- .
2. 3.2 Unscrew nuts -5- .
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Loosening rear spoiler

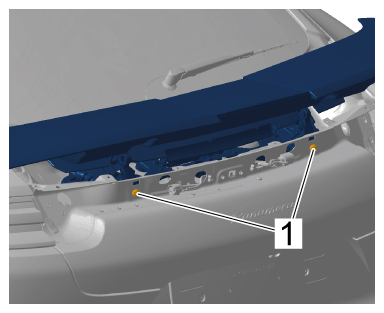

Unscrew and remove screws -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unscrewing screws

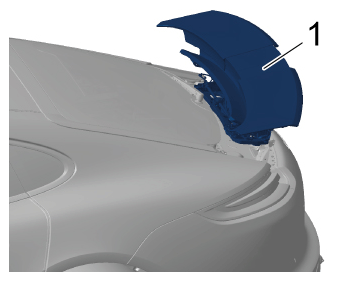

Guide rear spoiler -1- with wire harness through and remove it.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing rear spoiler
