Preliminary Work (Spoiler Drive Faulty)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2023 Porsche Panamera, 2022 Porsche Panamera, 2021 Porsche Panamera, 2020 Porsche Panamera, and 2019 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove trim panel for rear lid.

    > 709219 REMOVING AND INSTALLING TRIM PANEL FOR REAR LID

  2. Release and disconnect electric plug connection -2-  .

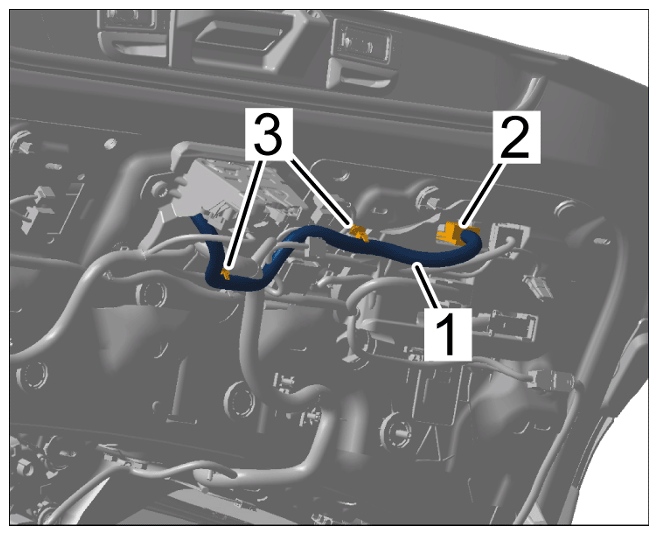

    G15864997Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Loosening wire harness

  3. Activate the rear spoiler motor directly using the 12 V battery (main drive PIN 1 and PIN 6/wing drive PIN 9 and PIN 10) and extend it > VAS 1978/35-33 - Release Tool Set
  4. Remove tail light in rear lid.

    > 943119 REMOVING AND INSTALLING TAIL LIGHT IN REAR LID
