Installing Rear Spoiler

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2023 Porsche Panamera, 2022 Porsche Panamera, 2021 Porsche Panamera, 2020 Porsche Panamera, and 2019 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Information

The rear spoiler must be extended for installation .

Pull wire harness for rear spoiler through the relevant opening in the lid panel.

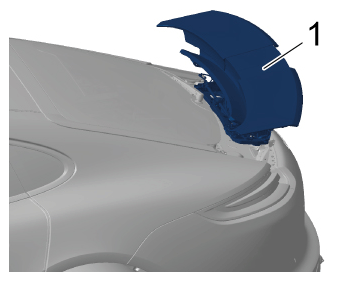

Fit rear spoiler -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fitting rear spoiler
Centre the rear spoiler in the recess.

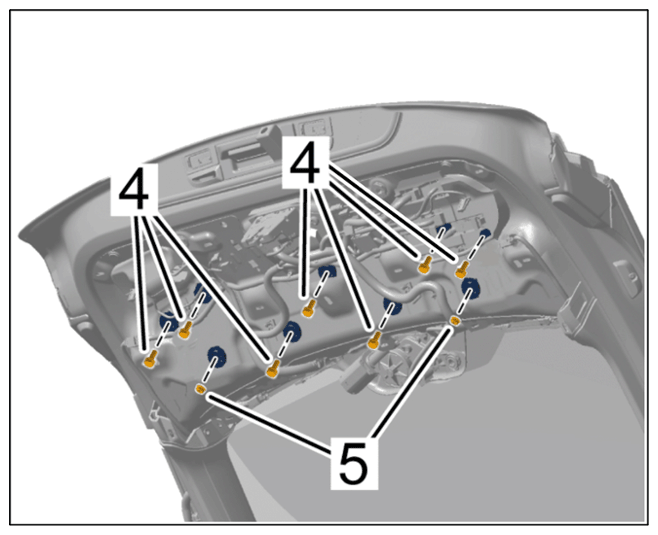

Secure rear spoiler.
1. 4.1 Screw in nuts -5- and tighten hand-tight.
2. 4.2 Screw in screws -4- and tighten hand-tight.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Securing rear spoiler

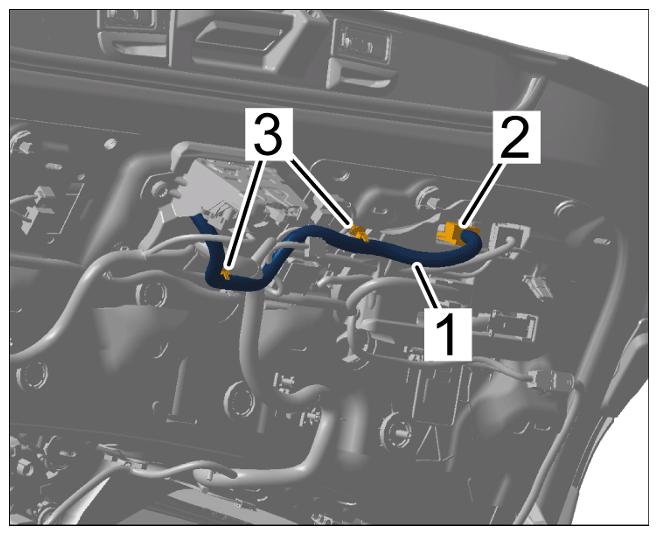

Secure wire harness -1- .
1. 5.1 Clip in retaining clips -3- .
2. 5.2 Connect electric plug connection -2- until it engages securely.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Securing wire harness
WARNING:
Electrically moved components
- Danger of limbs being trapped or severed
  → Switch off electric power to drive motor.

  → Make sure it does not switch on again.

  → Check that there is no electric charge.
Retract rear spoiler using > 9900 - PIWIS Tester 3 .
Adjust the rear spoiler.
> 665815 ADJUSTING REAR SPOILER
Secure rear spoiler.
1. 8.1 Tighten nuts -5- > Tightening torque 8 Nm (5.9 ftlb.)
2. 8.2 Tighten screws -4- > Tightening torque 8 Nm (5.9 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Securing rear spoiler

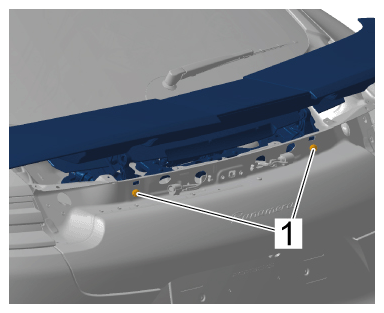

Screw in and tighten screws -1- > Tightening torque 8 Nm (5.9 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screwing in screws
