Technical Values

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2023 Porsche Panamera, 2022 Porsche Panamera, 2021 Porsche Panamera, 2020 Porsche Panamera, and 2019 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Location	Des...	Type	Basic val...	Toleranc...	Toleranc...

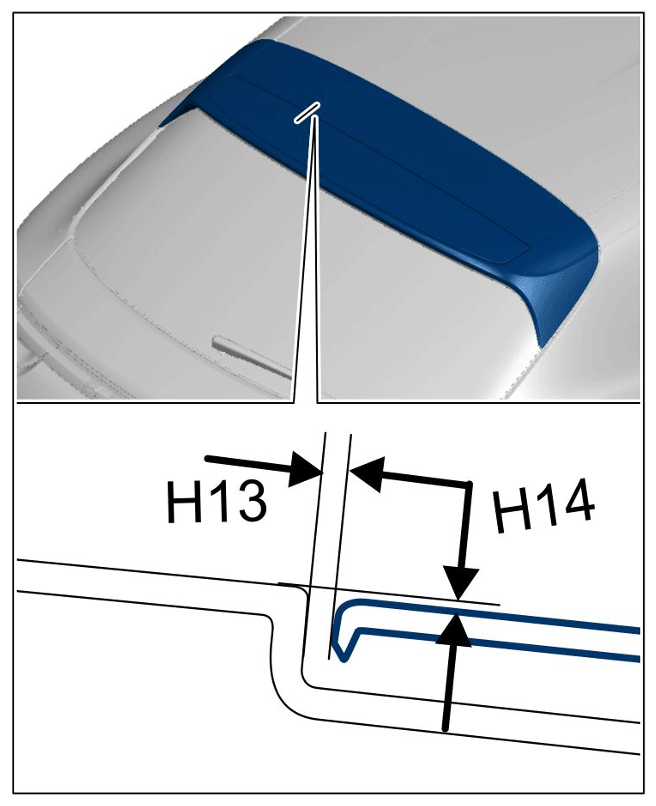

Rear spoiler (wing) to rear spoiler (H13)		Gap dimension	3.5 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension
Rear spoiler (wing) to rear spoiler (H14)		Gap dimension	0.5 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension

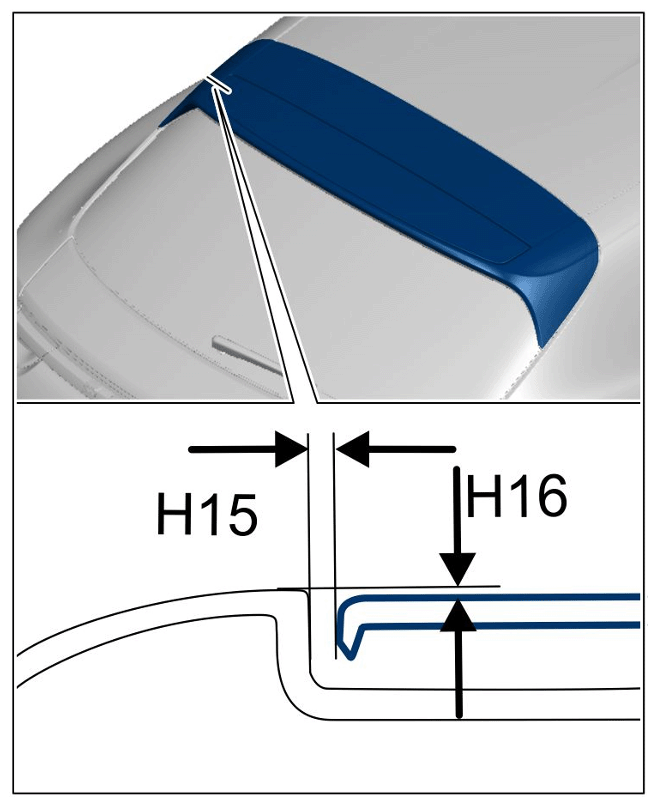

Rear spoiler (wing) to rear spoiler (H15)		Gap dimension	3.5 mm	+/- 0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension
Rear spoiler (wing) to rear spoiler (H16)		Gap dimension	0.5 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension

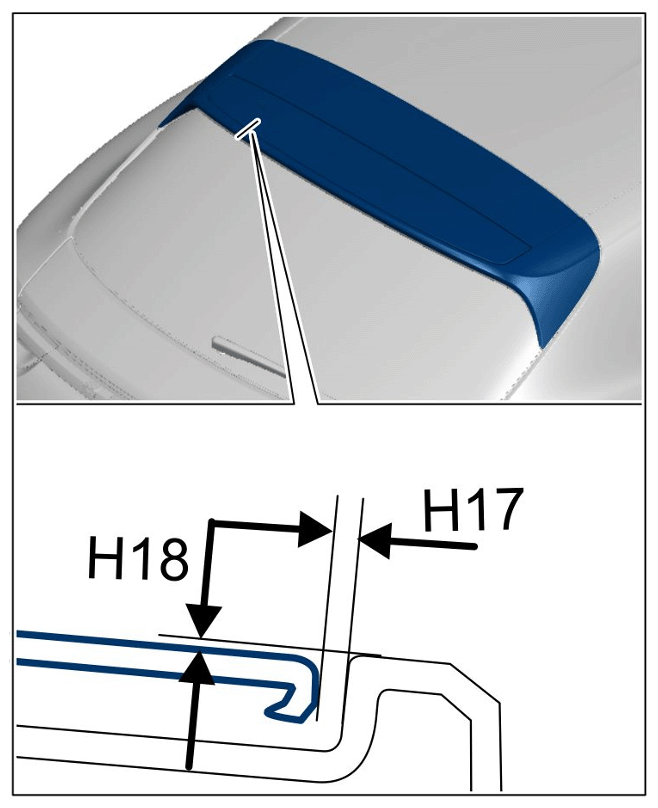

Rear spoiler (wing) to rear spoiler (H17)		Gap dimension	3.5 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension
Rear spoiler (wing) to rear spoiler (H18)	Running gap dimension	Gap dimension	0.5 mm - 0.3 mm	+/- 0.4 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension

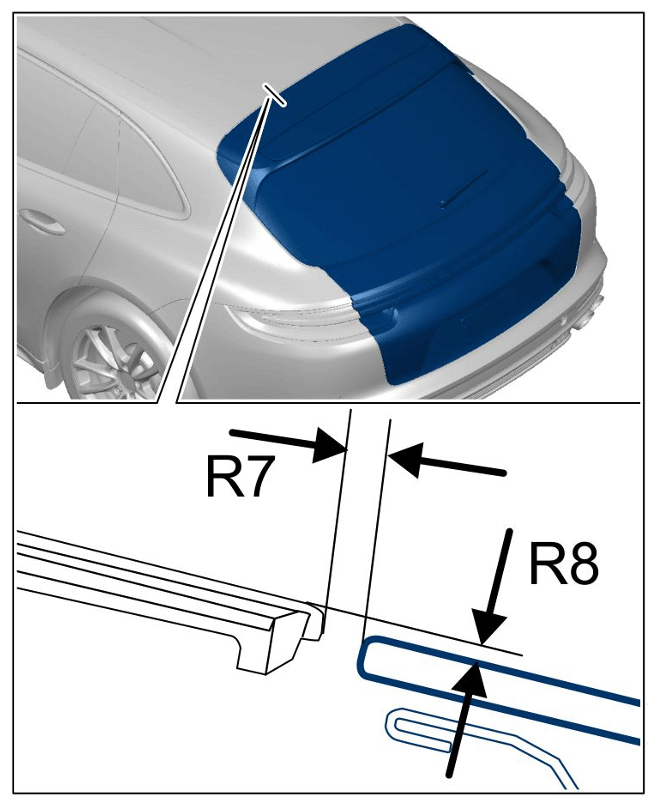

Rear lid to roof/P-roof (R7)		Gap dimension	4.8 mm	+ 1 mm	- 0.2 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension
Rear lid to roof/P-roof (R8)		Gap dimension	- 2 mm	+/- 0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension

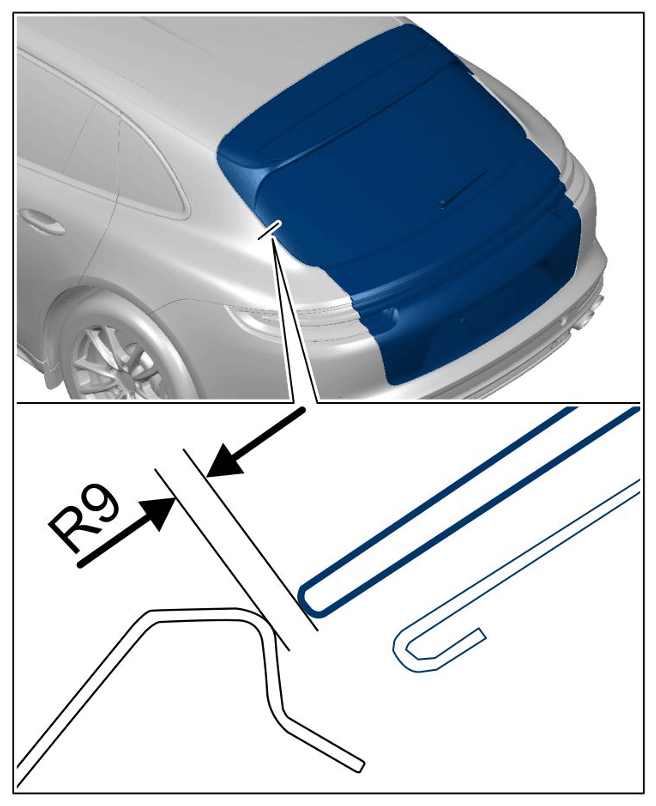

Rear lid to side panel (R9)		Gap dimension	4 mm	+/- 0.7 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension

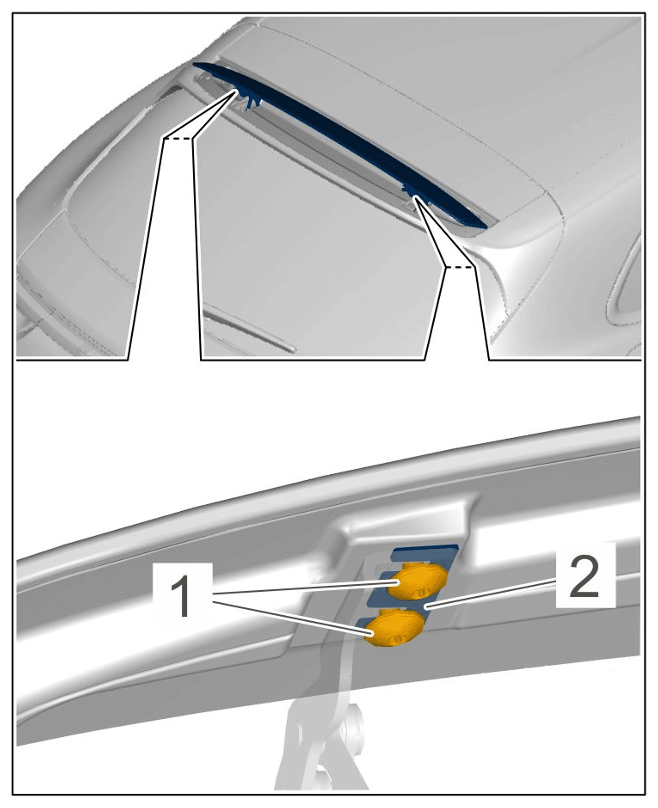

Rear spoiler (wing)	Item 1	Tightening torque	6 Nm (4.4 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear spoiler (wing)
