Adjusting Rear Spoiler (Wing)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2023 Porsche Panamera, 2022 Porsche Panamera, 2021 Porsche Panamera, 2020 Porsche Panamera, and 2019 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Check gap dimensions.
> WM, 5X00IN GAP DIMENSION

> Gap dimension 4 mm +/- 0.7 mm

> Gap dimension 3.5 mm +/- 0.5 mm

> Gap dimension 0.5 mm +/- 0.5 mm

> Gap dimension 3.5 mm +/- 0.8 mm

> Gap dimension 0.5 mm +/- 0.5 mm

> Gap dimension 3.5 mm +/- 0.5 mm

> Gap dimension 0.5 mm - 0.3 mm +/- 0.4 mm
For adapting the gap dimensions in X and Y direction.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

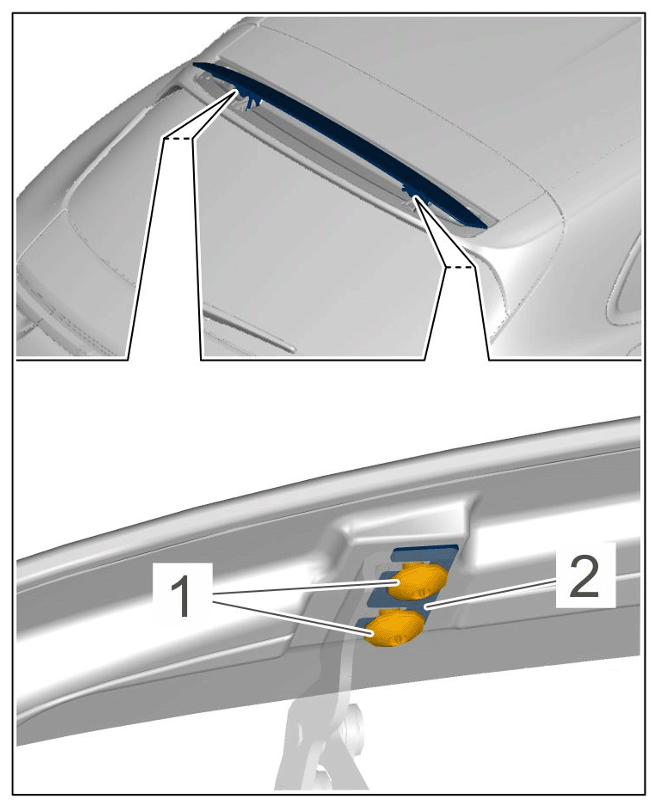

Rear spoiler (wing)
1. 2.1 Extend rear spoiler fully using PIWIS Tester III .
2. 2.2 Loosen screws -1- until the rear spoiler (wing) can still be moved.
3. 2.3 Retract rear spoiler (wing) fully using PIWIS Tester III .
4. 2.4 Adjust rear spoiler (wing).
5. 2.5 Check gap dimensions.
6. 2.6 Extend rear spoiler (wing) fully using PIWIS Tester III .
7. 2.7 Tighten screws to > Tightening torque 6 Nm (4.4 ftlb.) .
For adapting the gap dimensions in Z direction.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear spoiler (wing)

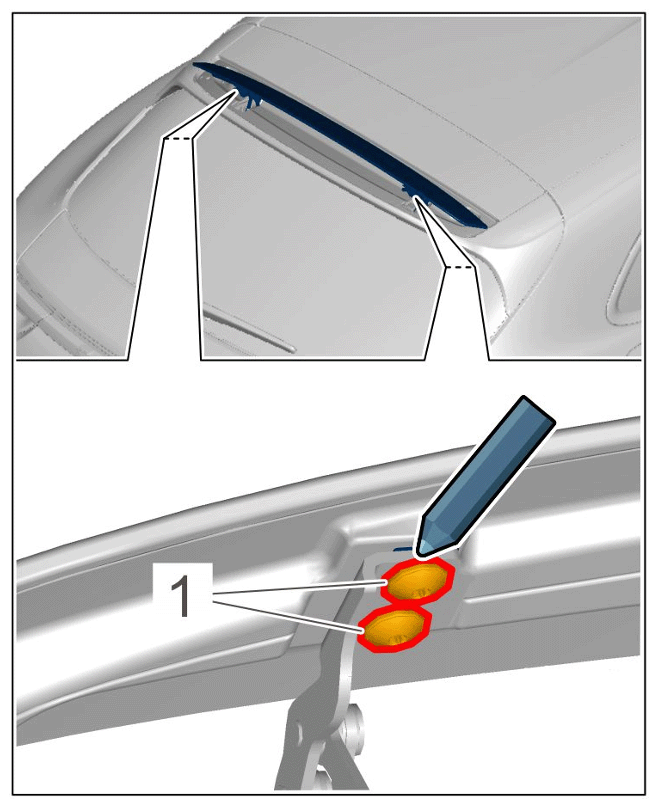

3.1 Mark position of rear spoiler (wing) -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear spoiler (wing) position
3.2 Loosen screws -1- until the shims -2- can be removed.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear spoiler (wing)
3.3 Replace shims -2- with corresponding shims from repair kit 974.898.037.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear spoiler (wing)

Information

Always replace self-locking screws.
3.4 Position rear spoiler (wing) -1- and tighten screws until the rear spoiler (wing) can still be moved.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear spoiler (wing) position
3.5 Retract rear spoiler (wing) fully using PIWIS Tester III.
3.6 Check gap dimensions.
3.7 Extend rear spoiler (wing) fully using PIWIS Tester III.
3.8 Tighten screws to > Tightening torque 6 Nm (4.4 ftlb.) .
