Technical Values

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2023 Porsche Panamera, 2022 Porsche Panamera, 2021 Porsche Panamera, 2020 Porsche Panamera, and 2019 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Location	Des...	Type	Basic val...	Toleranc...	Toleranc...

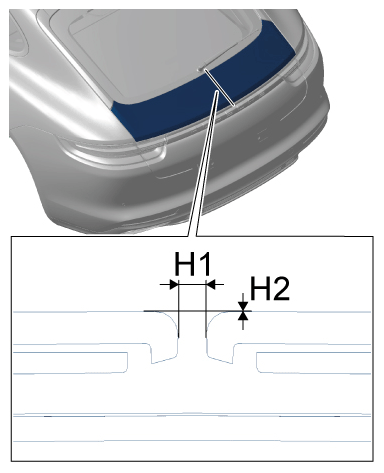

Rear spoiler to rear spoiler (H1)	Only for rear spoiler (wing)	Gap dimension	3 mm	+ 1.4 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension from rear spoiler to rear spoiler
Rear spoiler to rear spoiler (H2)	Offset, only for rear spoiler (wing)	Gap dimension	0 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension from rear spoiler to rear spoiler

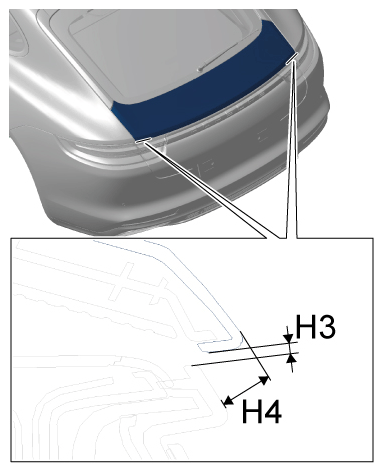

Tail light to rear spoiler (H3)		Gap dimension	1 mm	+/- 1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension from tail light to rear spoiler
Tail light to rear spoiler (H4)	Offset	Gap dimension	> -10 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension from tail light to rear spoiler

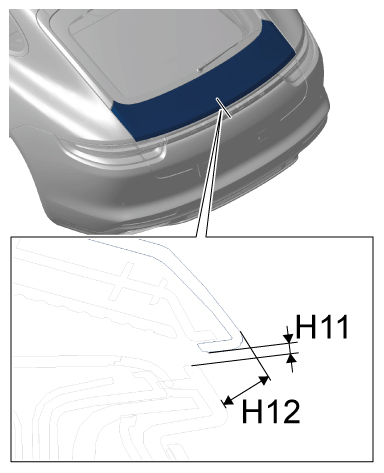

Rear spoiler to logo trim (H11)		Gap dimension	1 mm	+/- 1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear spoiler to logo trim
Rear spoiler to logo trim (H12)	Offset	Gap dimension	> -10 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear spoiler to logo trim

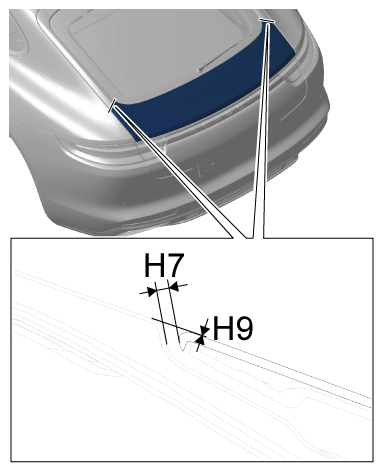

Rear spoiler to rear lid (H7)		Gap dimension	3 mm	+ 1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear spoiler to rear lid

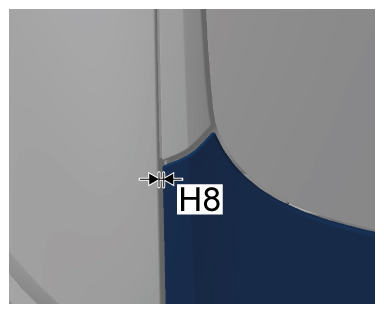

Rear spoiler to rear lid (H8)	Y offset	Gap dimension	0 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear spoiler to rear lid
Rear spoiler to rear lid (H9)	Z offset	Gap dimension	0 mm	+ 0.5 mm	- 0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear spoiler to rear lid

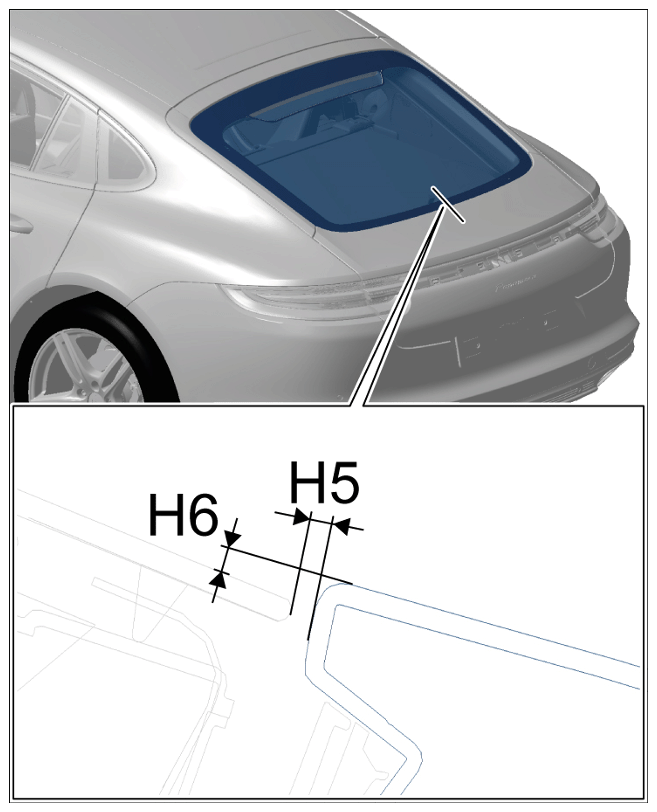

Rear window to rear spoiler (H5)		Gap dimension	3.5 mm	+ 1.5 mm	- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension from rear window to rear spoiler
Rear spoiler to rear window (H6)	Offset	Gap dimension	- 2.5 mm	+/- 1.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension from rear window to rear spoiler

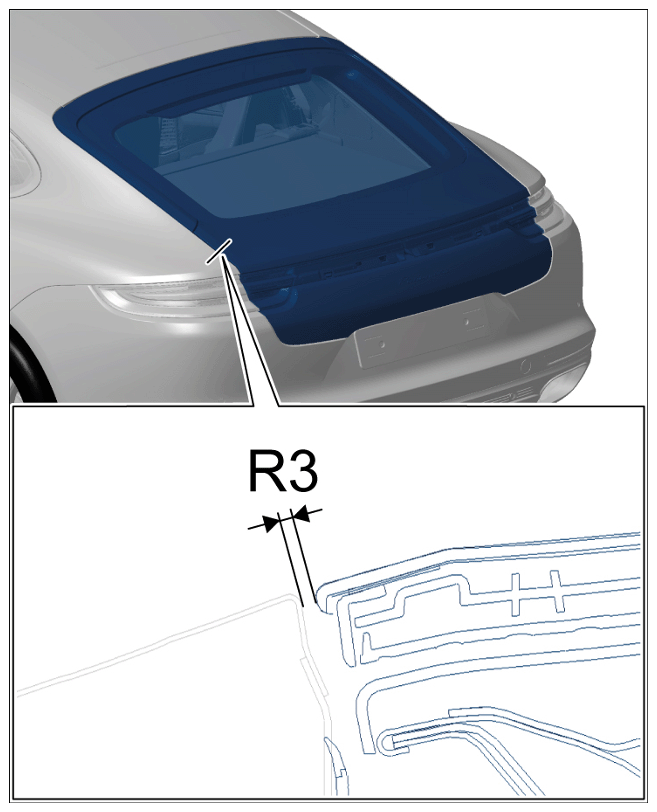

Spoiler to side panel (R3)		Gap dimension	3.5 mm	+/- 0.7 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension

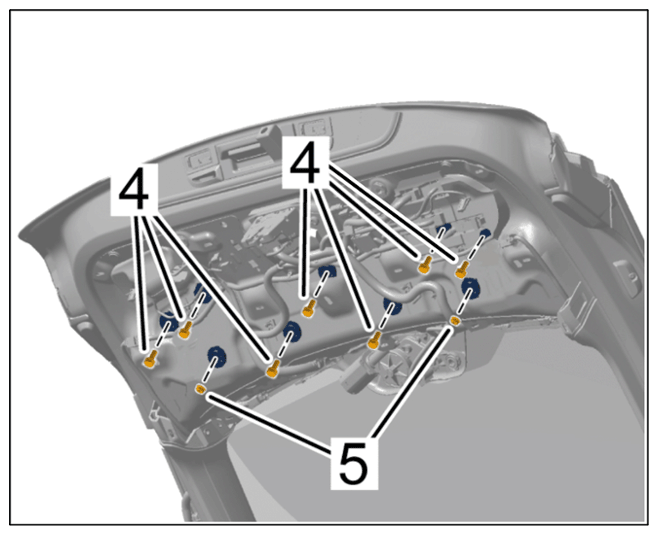

Nuts on rear spoiler	Item 5	Tightening torque	8 Nm (5.9 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws on spoiler drive
Screws on rear spoiler	Item 4	Tightening torque	8 Nm (5.9 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws on spoiler drive

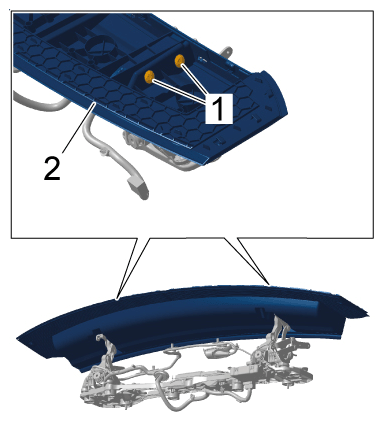

Screws securing lower part of spoiler to spoiler drive	Item 1	Tightening torque	5.6 Nm (4.1 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws securing lower part of spoiler to bracket

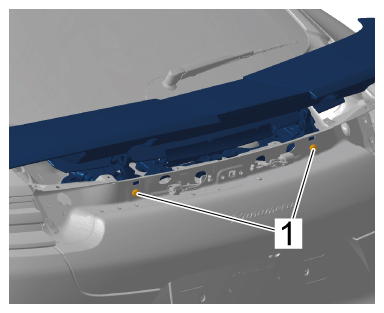

Screw securing rear spoiler to bracket	M6 x 32	Tightening torque	8 Nm (5.9 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw securing rear spoiler to bracket
