Removing Side Air Intake Grille

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2023 Porsche Panamera, 2022 Porsche Panamera, 2021 Porsche Panamera, 2020 Porsche Panamera, and 2019 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Open the front door.

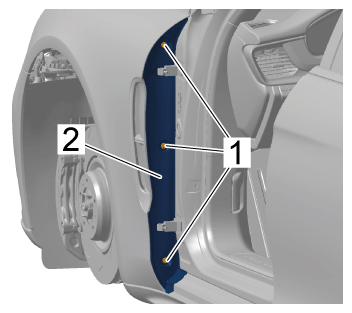

Remove expanding clips -1- and remove splash guard on front door -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing splash guard

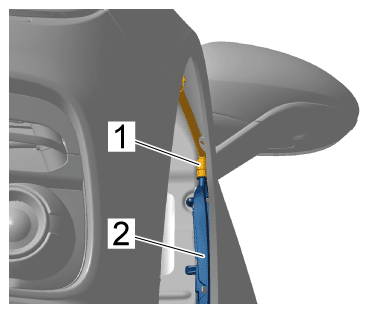

Unclip hose for headlight ventilation -1- from side air intake grille -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unclipping headlight ventilation hose

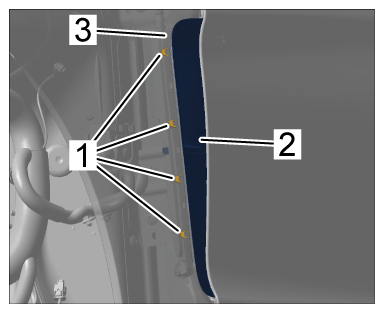

Unclip locking lugs -1- and remove trim -2- on inner part of air intake grille -3- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing cover

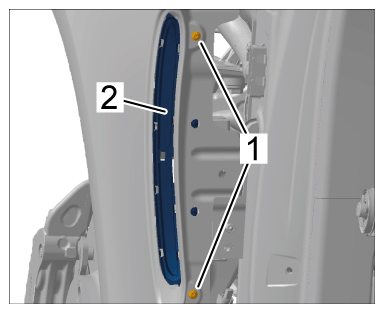

Unscrew screws -1- and remove side air intake grille -2- from the wing.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing inner part
