Positioning Logo With Logo Template

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2023 Porsche Panamera, 2022 Porsche Panamera, 2021 Porsche Panamera, 2020 Porsche Panamera, and 2019 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.
  1. Insert the relevant interchangeable insert -1-  into logo template -2-  .

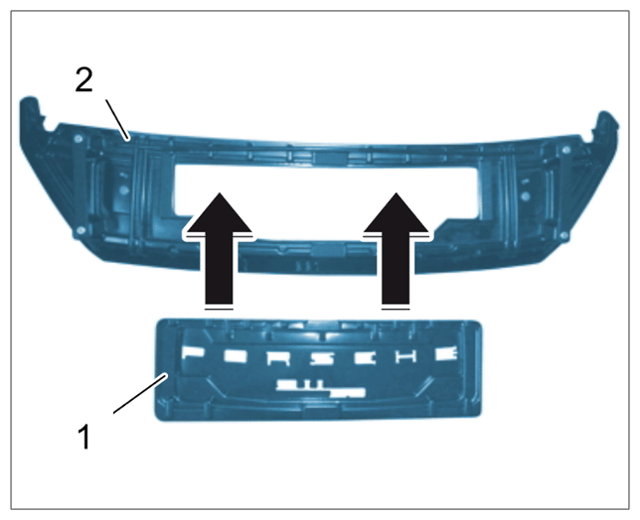

    G15864947Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Preparing logo template (shown on the 991)

  2. Position the logo template -1-  on the vehicle.

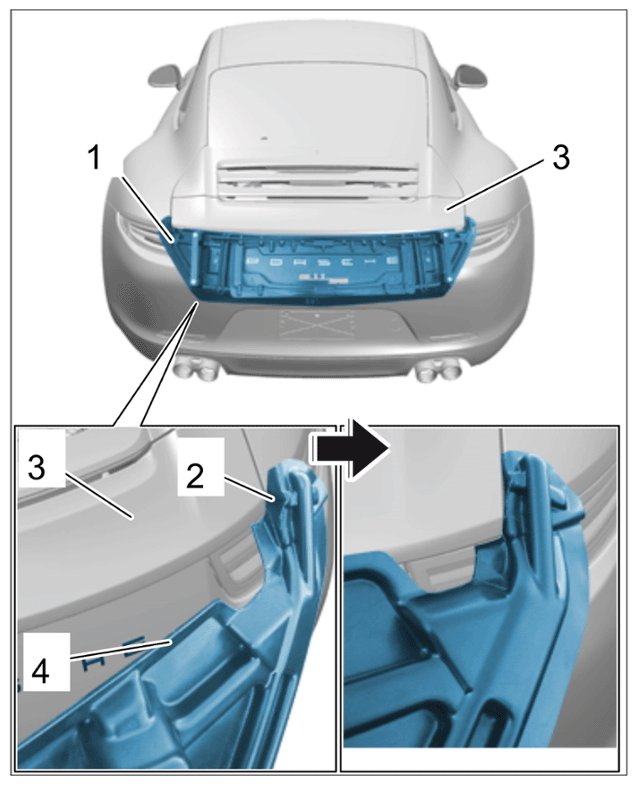

    G15864948Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Positioning logo template (shown on the 991)

  3. Remove protective paper from the logo -1-  .
  4. Align the logo -1-  using the logo template -2-  and press it on firmly.

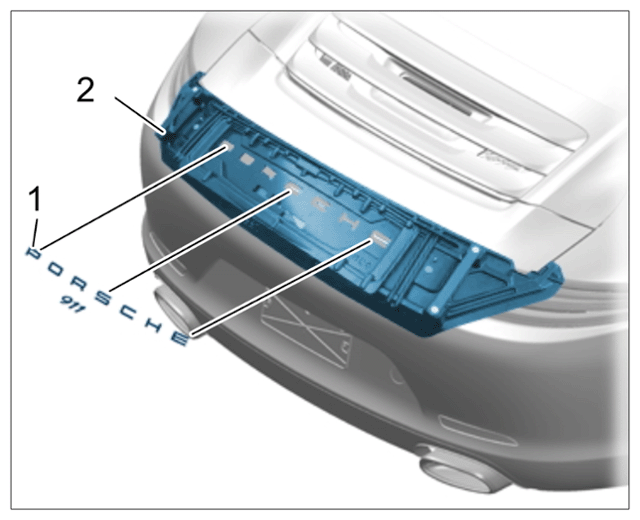

    G15864949Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Affixing logo (shown on the 991)

  5. Remove logo template from the vehicle.
