Technical Values

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2023 Porsche Panamera, 2022 Porsche Panamera, 2021 Porsche Panamera, 2020 Porsche Panamera, and 2019 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.
Location Des... Type Basic val... Toleranc... Toleranc...
Screw for tailgate cover Item 2 Tightening torque 4 Nm (3 ftlb.)

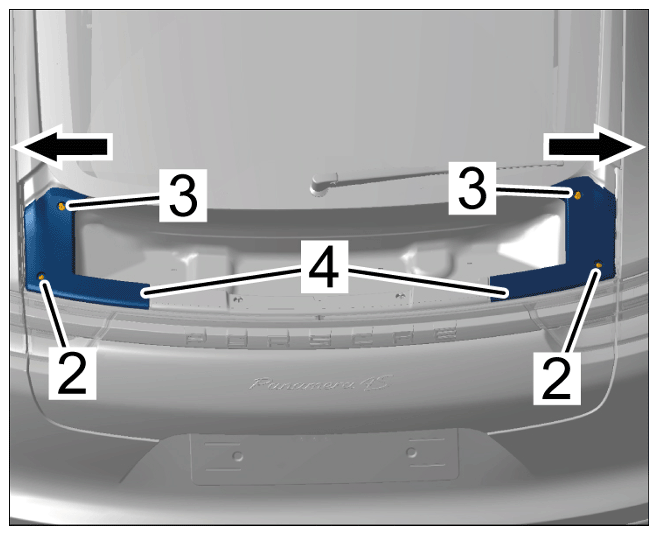

G15864921Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw for tailgate cover
Screw for centre cover Item 8 Tightening torque 4 Nm (3 ftlb.)

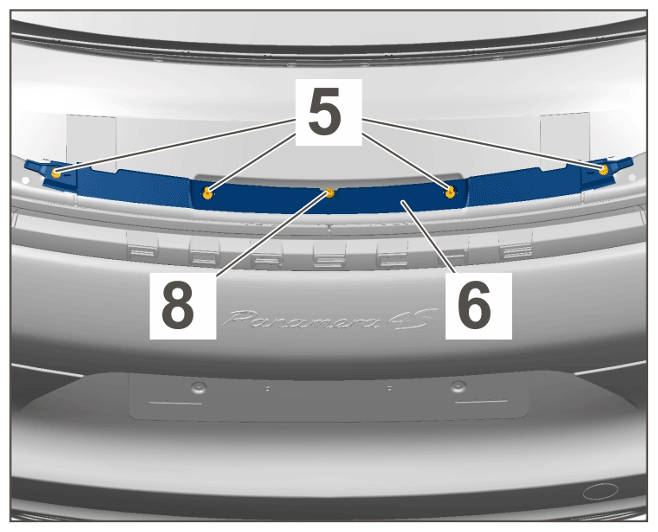

G15864922Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Remove centre cover
