Removing (Rear) Roof Moulding
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2023 Porsche Panamera, 2022 Porsche Panamera, 2021 Porsche Panamera, 2020 Porsche Panamera, and 2019 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

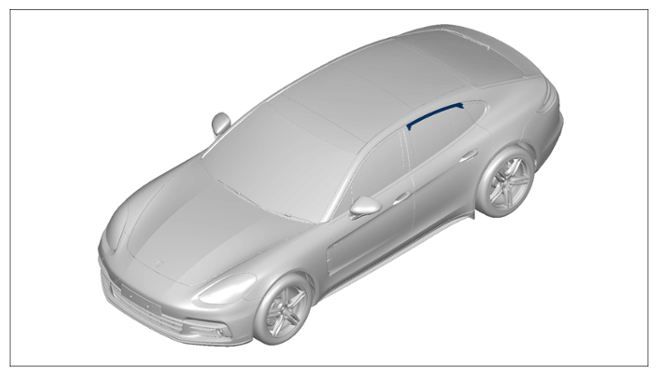

Installation position of (rear) roof moulding
- Detach (rear) roof moulding.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

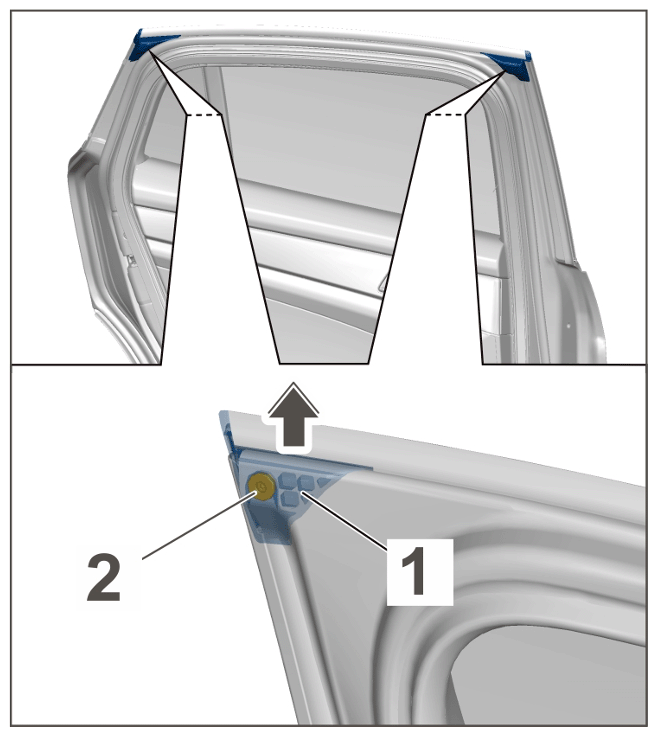

Fastening screws
- 1.1 Push the seal -1-
upwards. -arrow-
- 1.2 Unscrew fastening screws -2-
.
- Prise off (rear) roof moulding -1-
with your thumbs. -arrow-
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

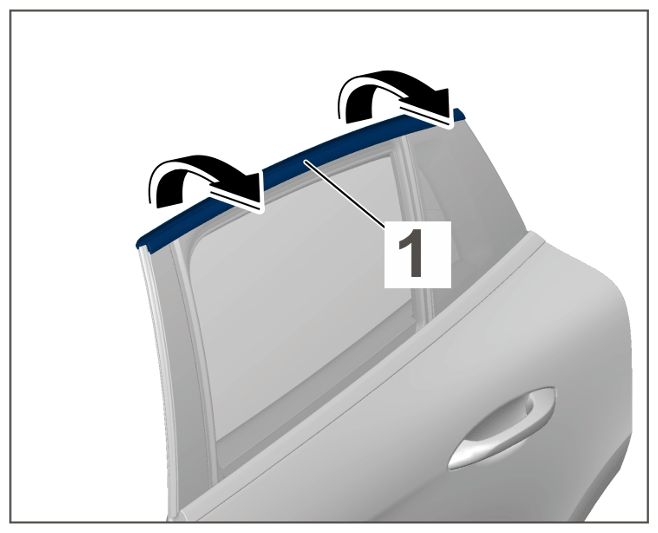

Levering off (rear) roof moulding
