Removing (Front) Roof Moulding

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2023 Porsche Panamera, 2022 Porsche Panamera, 2021 Porsche Panamera, 2020 Porsche Panamera, and 2019 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

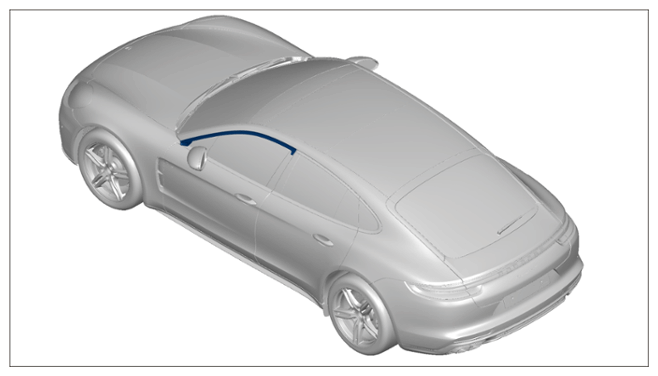

G15864912Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installation position of (front) roof moulding

  1. Detach (front) roof moulding at the rear.

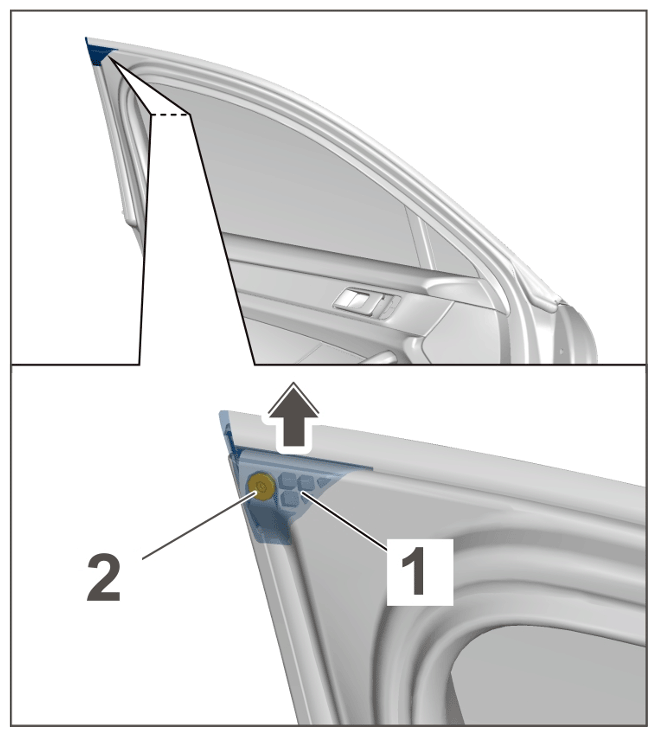

    G15864913Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Fastening screw

    1. 1.1 Push the seal -1-  upwards. -Arrow-
    2. 1.2 Unscrew fastening screw -2-  .
  2. Prise off (front) roof moulding -1-  from front -arrow A-  to rear -arrow B-  with your thumbs.

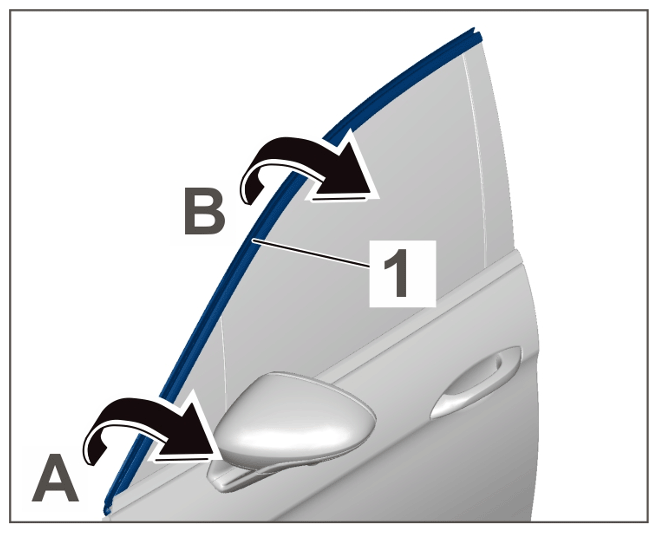

    G15864914Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Prising off (front) roof moulding

  3. Remove (front) roof moulding -1-  . -Arrow-

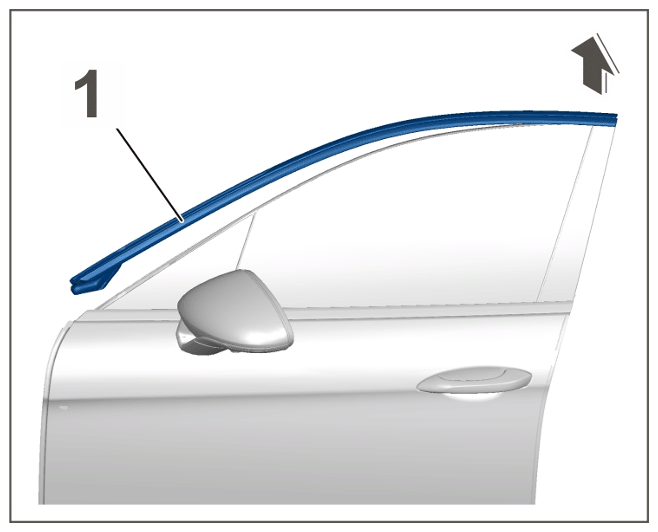

G15864915Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing (front) roof moulding
