Technical Values
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2023 Porsche Panamera, 2022 Porsche Panamera, 2021 Porsche Panamera, 2020 Porsche Panamera, and 2019 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.
| Location |
Des... |
Type |
Basic val... |
Toleranc... |
Toleranc... |

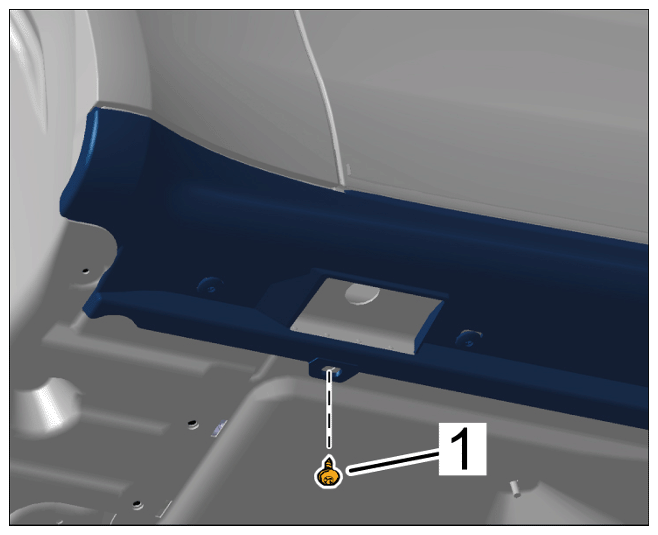

| Screw securing side skirts to longitudinal member |
Item 1 |
Tightening torque |
2.5 Nm (1.8 ftlb.) |
|
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Door entry guard |
| Screws and nut |
Items 1 and 2 |
Tightening torque |
2.5 Nm (1.8 ftlb.) |
|
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.

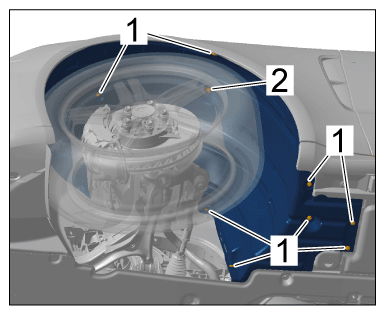

Rear part of front wheel housing liner |
