Subsequent Work

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2023 Porsche Panamera, 2022 Porsche Panamera, 2021 Porsche Panamera, 2020 Porsche Panamera, and 2019 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

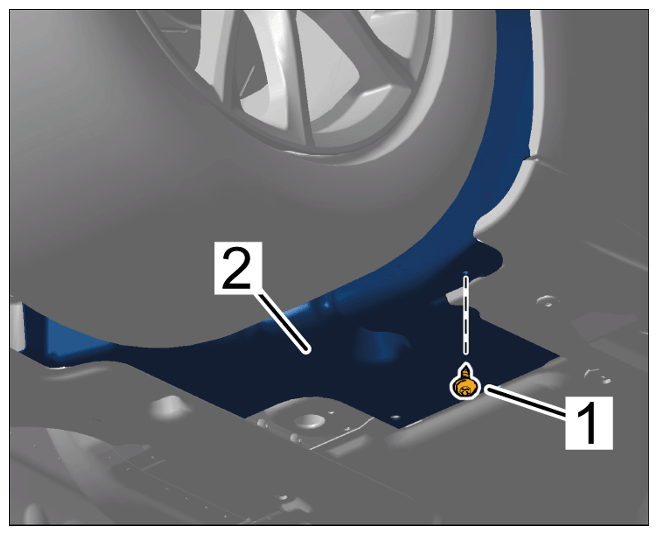

Install rear wheel housing liner -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installing wheel housing liner
Screw in and tighten screws -1- > Tightening torque 2.5 Nm (1.8 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw in and tighten screw.

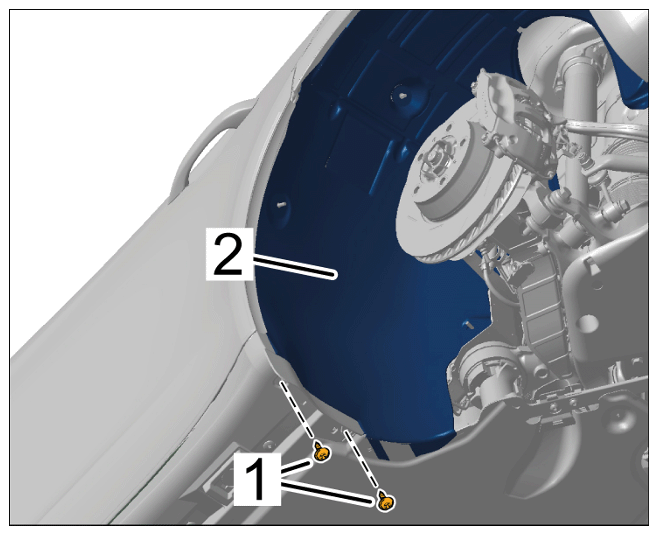

Install wheel housing liner -2- at the door entry guard.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installing wheel housing liner
Screw in and tighten screw -1- > Tightening torque 2.5 Nm (1.8 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw in and tighten screw.
