Removing Sill Cover

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2023 Porsche Panamera, 2022 Porsche Panamera, 2021 Porsche Panamera, 2020 Porsche Panamera, and 2019 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

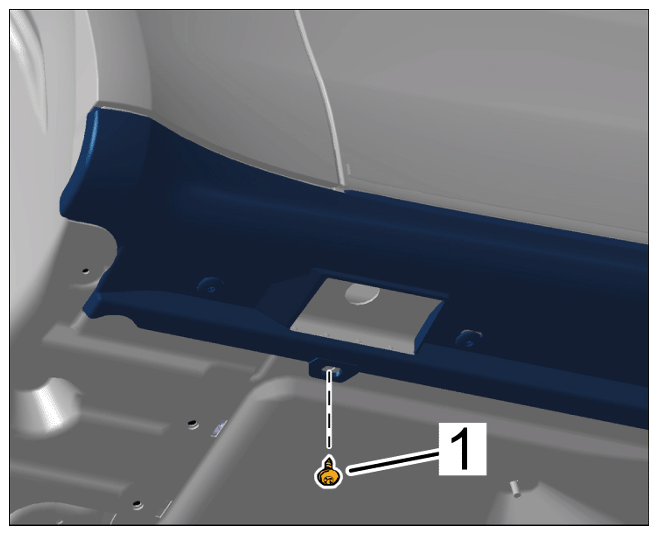

Unscrew and remove screw -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Loosening door entry guard

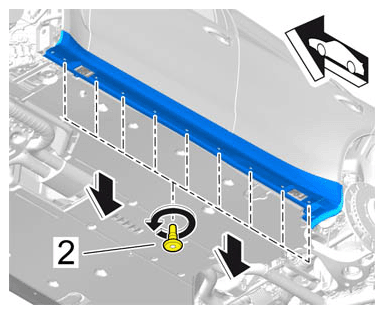

Unscrew and remove screws -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Loosening door entry guard mounting

Information
- The sill cover (door entry guard) can only be removed and installed when the doors are open. The illustration shows the vehicle without doors for the sake of clarity .

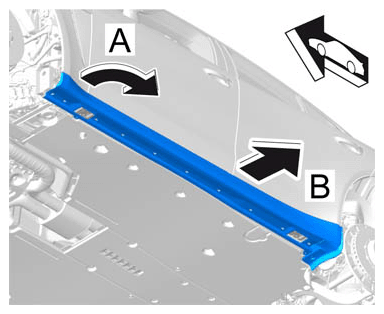

Starting at the front, unclip door entry guard completely in direction -A- , then in direction -B- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unclipping door entry guard

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unclipping door entry guard

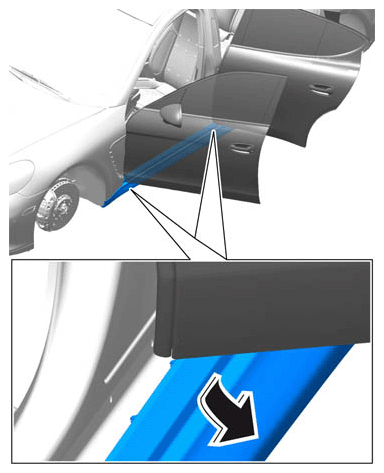

Guide door entry guard out of the door gap at the front and rear and remove door entry guard.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing door entry guard

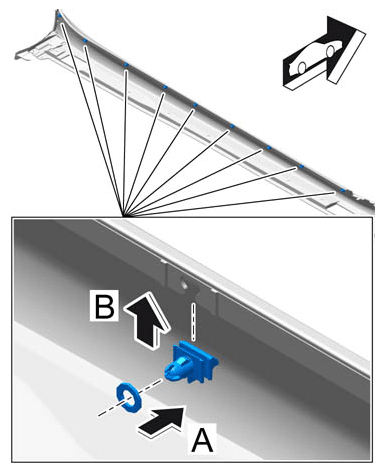

Check clips for damage. Replace damaged clips or sealing washers.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

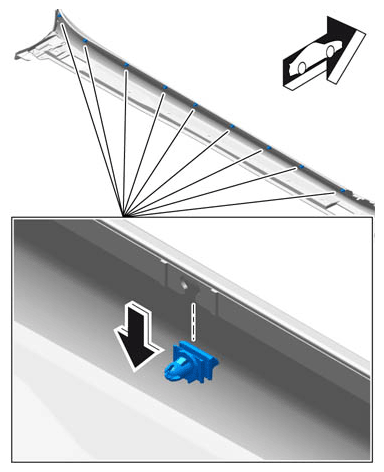

Removing clips

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installing clips
