Installing Sill Cover

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2023 Porsche Panamera, 2022 Porsche Panamera, 2021 Porsche Panamera, 2020 Porsche Panamera, and 2019 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

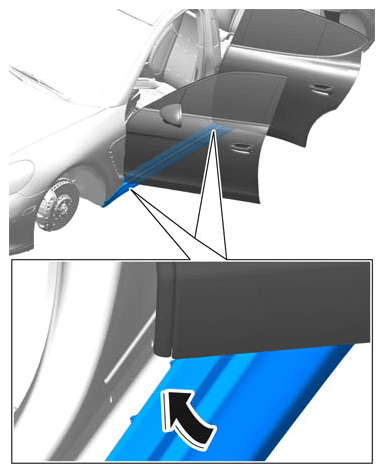

Fit door entry guard, guide it into the door gap and position it temporarily along the door sill.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fitting door entry guard

Information
- First position and engage the clips in the illustrated area of the B-pillar. Then engage all other clips .
Information
- The sill cover (door entry guard) can only be removed and installed when the doors are open. The illustration shows the vehicle without doors for the sake of clarity .

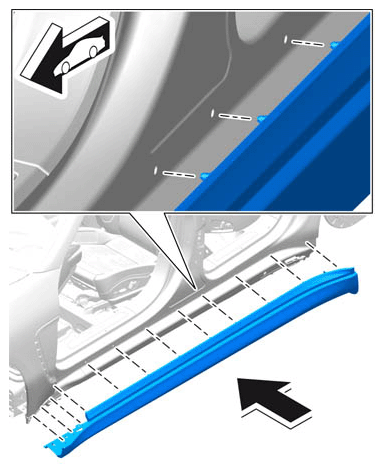

Clip door entry guard in fully.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Clipping in door entry guard

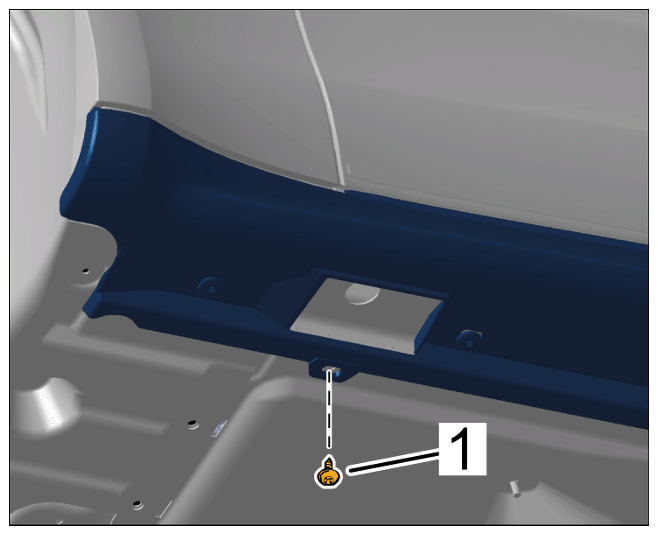

Screw in and tighten screw -1- > Tightening torque 2.5 Nm (1.8 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screwing on door entry guard

Information
- The screw is the expansion rivet mandrel. No additional tightening is required .

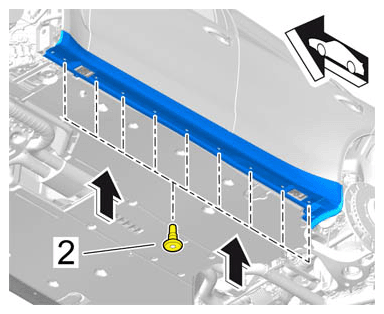

Press in screws -2- as far as they will go.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fitting lower mounting
