Removing Front Logo

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2023 Porsche Panamera, 2022 Porsche Panamera, 2021 Porsche Panamera, 2020 Porsche Panamera, and 2019 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Information

Replace nuts following removal.

  1. Unscrew nuts -3-  and remove logo -1-  and base -2-  .

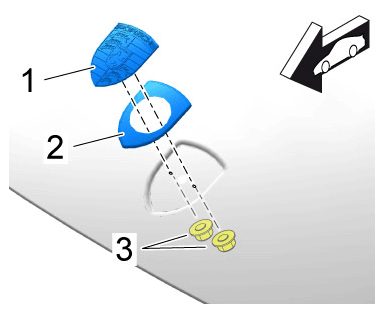

G15864889Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing logo and base
