Removing Radiator Grille

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2023 Porsche Panamera, 2022 Porsche Panamera, 2021 Porsche Panamera, 2020 Porsche Panamera, and 2019 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

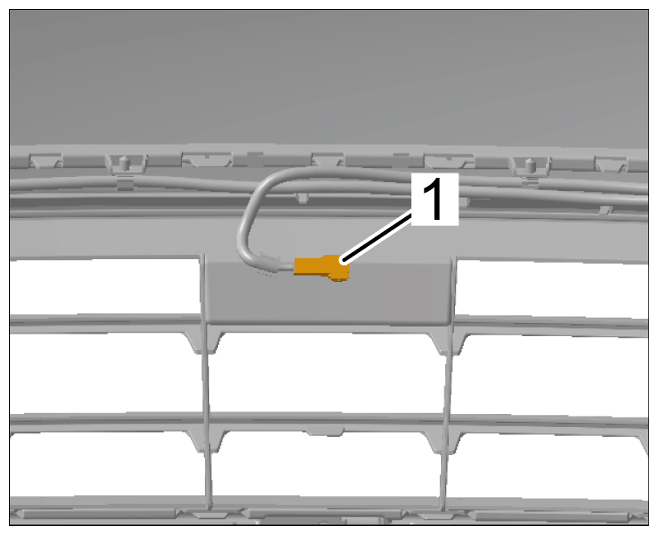

Release and disconnect electric plug connection -1- on front camera.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Releasing and pulling off electric plug connection

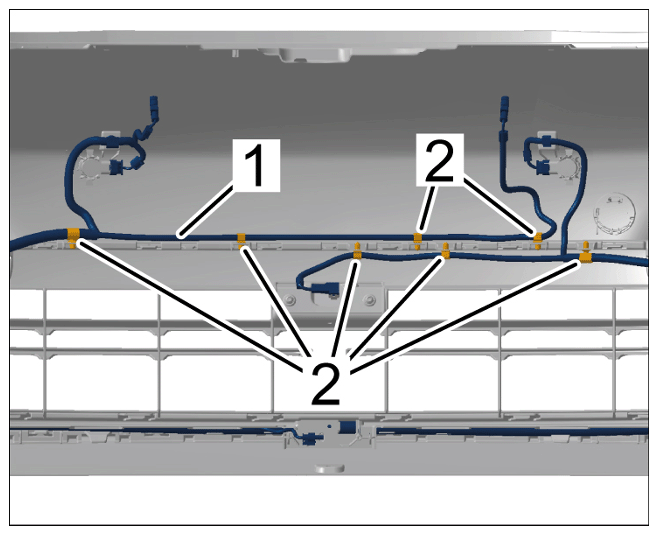

Unclip electric line -1- using locking lugs -2- on the radiator grille.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unclipping electric line

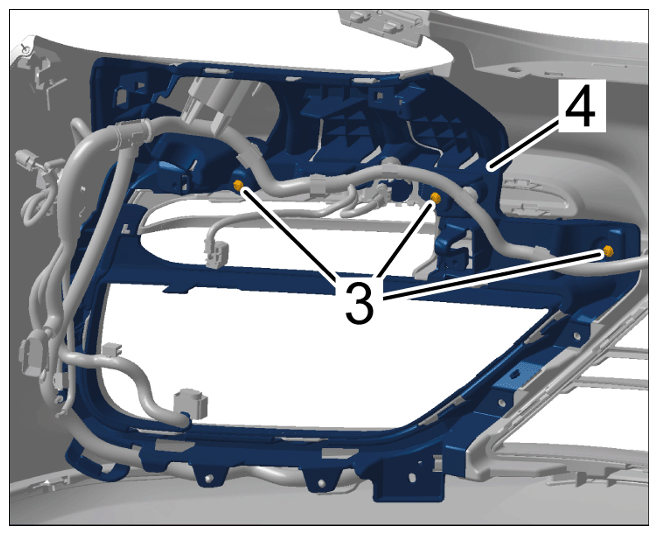

Unscrew screws -3- on the frame -4- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unscrewing screws

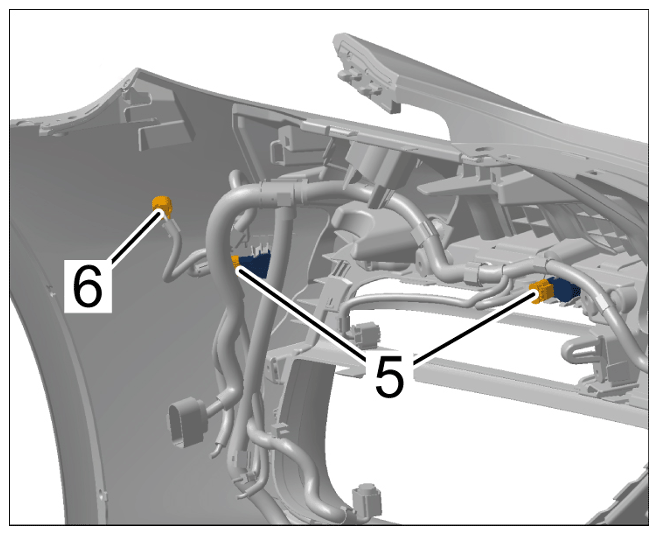

Release and disconnect electric plug connections -5- on the outer Park Assist sensors.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Releasing and pulling off electric plug connections
Only for USA vehicles:
Disconnect electric plug connection -6- on position light.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Releasing and pulling off electric plug connection

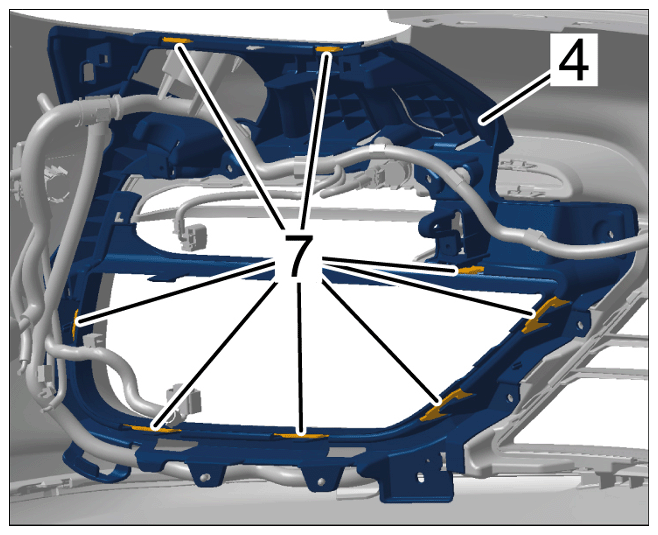

Unclip frame -4- at the locking lugs -7- and set it aside with lines connected.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unclipping trim surround

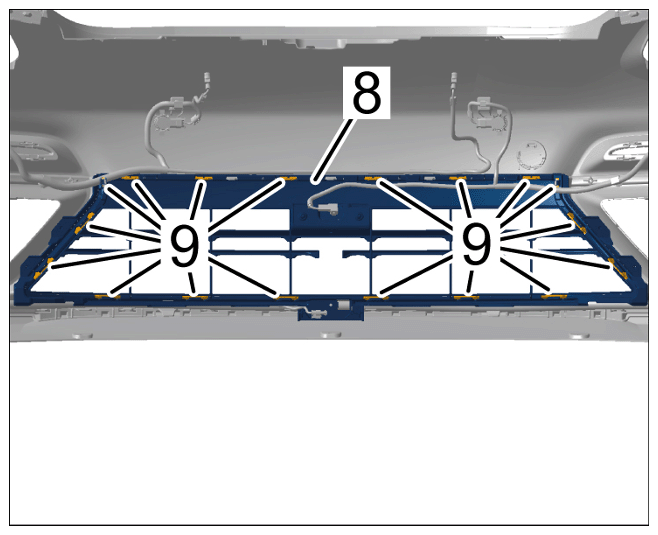

Unclip radiator grille -8- at the locking lugs -9- and remove radiator grille -8- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unclipping radiator grille
