Removing Front Air Grille

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2023 Porsche Panamera, 2022 Porsche Panamera, 2021 Porsche Panamera, 2020 Porsche Panamera, and 2019 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Information

Shown on vehicles with automatic distance control (I-no.: 8T3 - ACC)

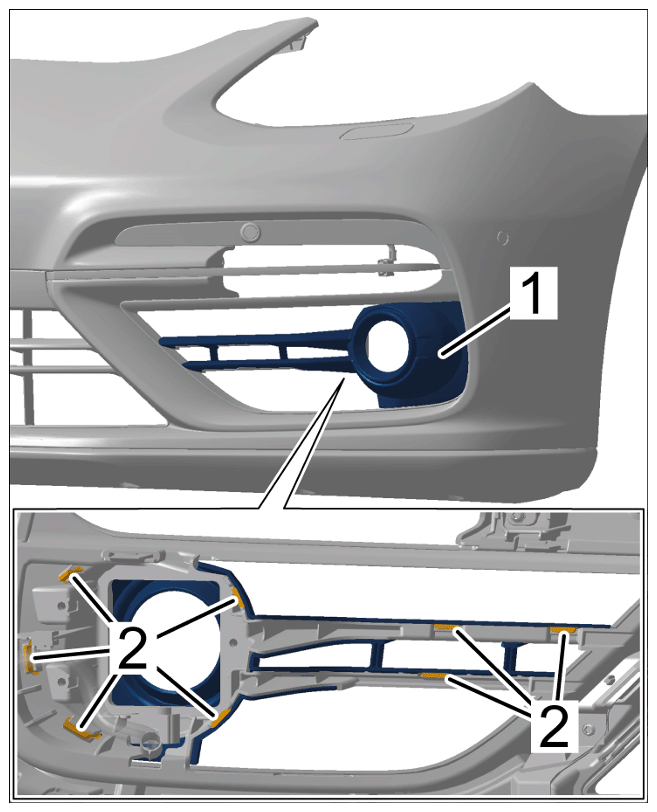

Unclip vane -1- at the locking lugs -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unclipping vane

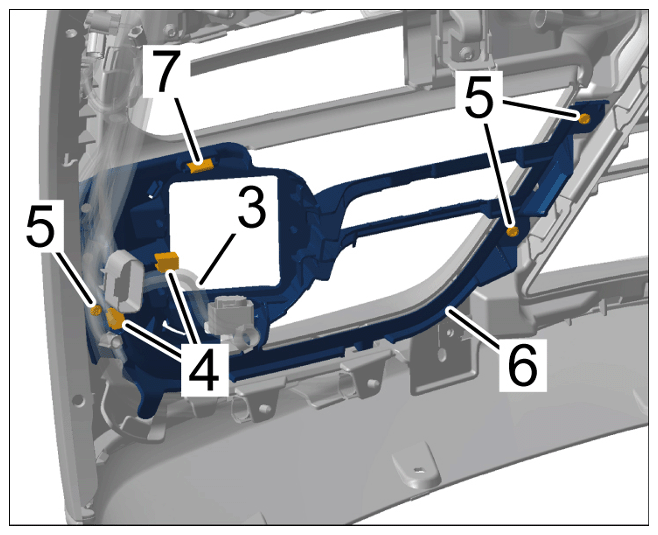

Unclip electric wire harness -3- with retaining clips -4- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unclipping electric wire harness
Unscrew and remove screws -5- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unscrewing screws
Unclip air grille -6- at the locking lug -7- using a suitable tool.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing air grille
