Removing Motor For (Front) Sun Blind
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2023 Porsche Panamera, 2022 Porsche Panamera, 2021 Porsche Panamera, 2020 Porsche Panamera, and 2019 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Voltage peaks
- Risk of damage to electrical load or to the control unit
→ Remove the ignition key and switch off load before disconnecting or removing load.
Information
Always comply with the regulations for handling ESD-sensitive components!
- Always wear approved work clothes and shoes when carrying out assembly work .
- Do not remove new parts from ESD (electrostatic discharge) protective packaging until shortly before installation .
- Do not touch electric pins and plug contacts .
- Remove motor for sun blind -3- .

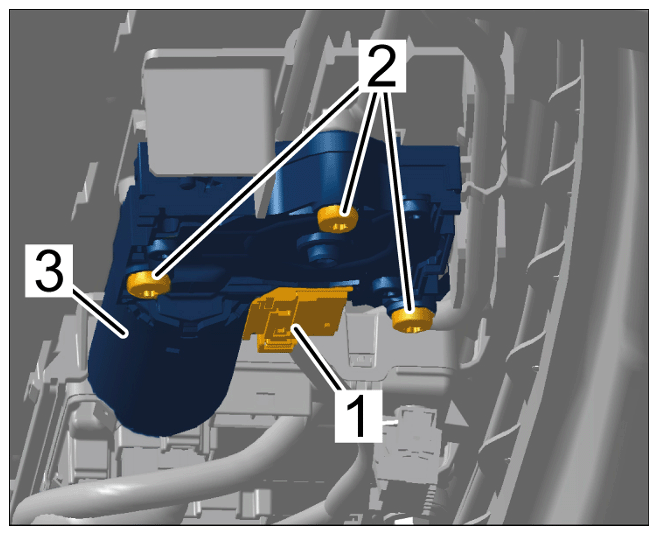

Removing motor for sun blind
- 1.1 Release and unplug electric plug connection -1- .
- 1.2 Unscrew and remove screws -2- .
- 1.3 Remove motor for glass sliding roof -3- .
