Installing Motor For (Front) Sun Blind

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2023 Porsche Panamera, 2022 Porsche Panamera, 2021 Porsche Panamera, 2020 Porsche Panamera, and 2019 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Align the sun blind so that it is parallel.
1. 1.1 The sun blind must be parallel before installing the motor.
2. 1.2 Set the same distance -a- from the front edge -4- and sun blind module -5- on both sides.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

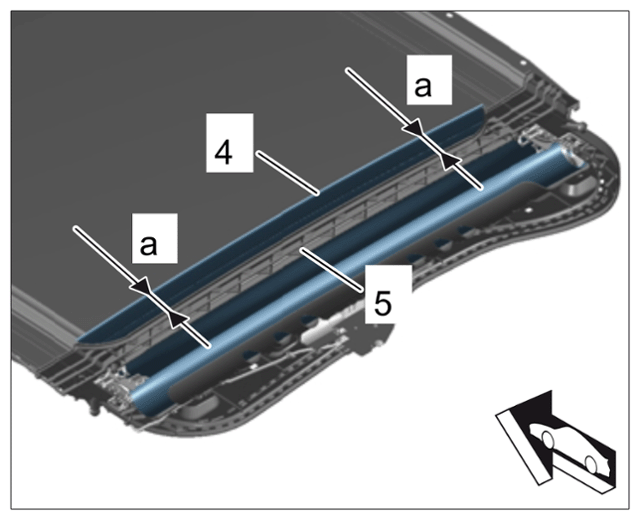

Aligning sun blind

Information

Do not continue to turn the motor after inserting the pinion into the drive cables because if you do, the control bolts will move closer together.
Install motor for sun blind -3- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

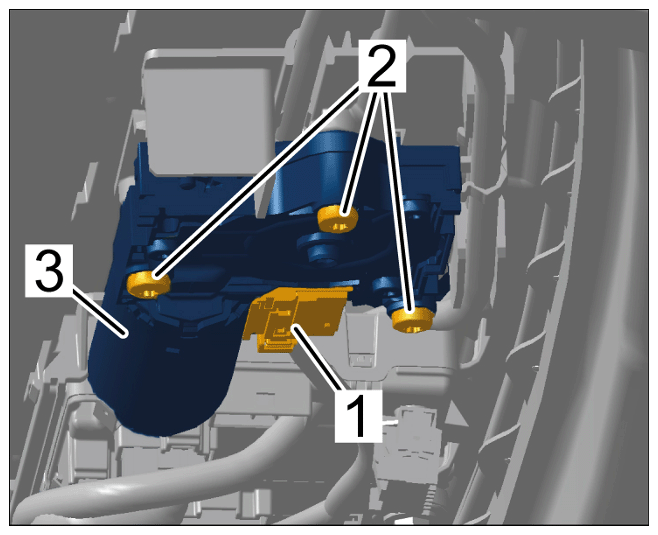

Installing motor for sun blind

2.1 Push motor for sun blind -3- with drive wheel into the cut-out in the frame on the glass sliding roof.
2.2 Screw in and tighten screws -2- > Tightening torque 3 Nm (2 ftlb.) +/- 0.3 Nm (0.2 ftlb.)
2.3 Connect electric plug connection -1- until it engages securely.
