Technical Values

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2023 Porsche Panamera, 2022 Porsche Panamera, 2021 Porsche Panamera, 2020 Porsche Panamera, and 2019 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Location	Des...	Type	Basic val...
Screws for rear roof sun blind mechanism	Item 1	Tightening torque	2 Nm (1.5 ftlb.)

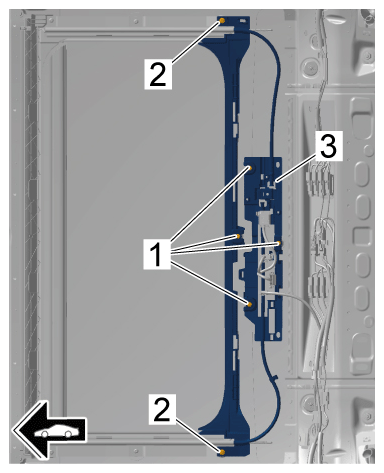

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear sun blind mechanism
Screws for bracket for rear roof sun blind motor	Item 1	Tightening torque	2.5 Nm (2 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Bracket for motor
Screws on mechanism for bracket for rear roof sun blind motor	Item 2	Tightening torque	2 Nm (1.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Bracket for motor
