Removing Rear Roof Sun Blind Mechanism

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2023 Porsche Panamera, 2022 Porsche Panamera, 2021 Porsche Panamera, 2020 Porsche Panamera, and 2019 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Information

Some of the repair illustrations show only one side of the vehicle .
Also complete certain steps on the opposite side of the vehicle as well .

Information

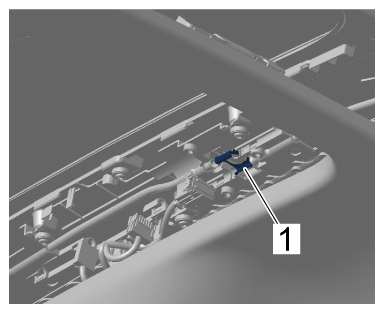

The guide piece -1- can fall out when removing the drive cables.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Guide piece

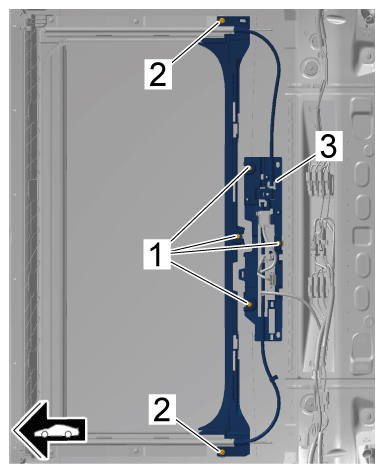

Remove bracket for rear roof sun blind motor -3- .
1. 1.1 Unscrew screws -1- and -2- .
2. 1.2 Guide out bracket for rear roof sun blind motor -3- and pull drive cables for the sun blind out of the guides.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bracket for rear roof sun blind motor

Information

The help of another person is required.

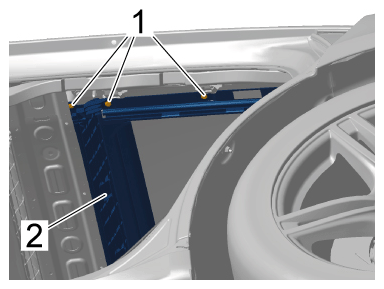

Unscrew screws -1- and guide out rear roof sun blind mechanism -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear roof sun blind mechanism
