Installing Rear Roof Sun Blind Mechanism

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2023 Porsche Panamera, 2022 Porsche Panamera, 2021 Porsche Panamera, 2020 Porsche Panamera, and 2019 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Information

Some of the repair illustrations show only one side of the vehicle .
Also complete certain steps on the opposite side of the vehicle as well .

Information

Do not grease sun blind sliders and operating cables.

Information

The help of another person is required.

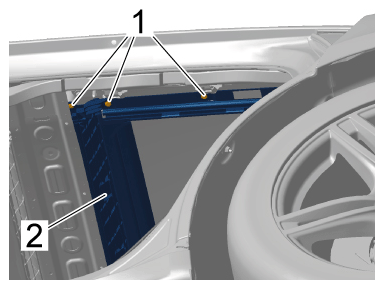

Insert rear roof sun blind mechanism -2- and screw in and tighten screws -1- > Tightening torque 2 Nm (1.5 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear roof sun blind mechanism

Information

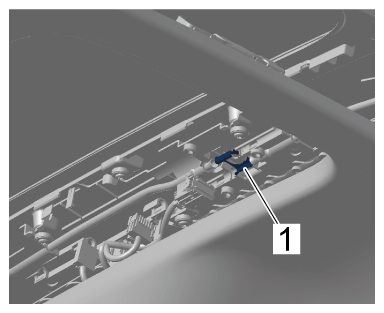

Make sure that the guide piece -1- is inserted.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Guide piece

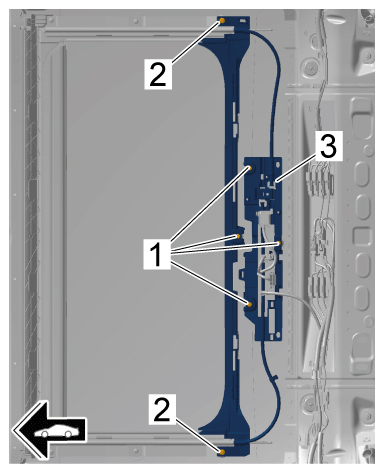

Install bracket for rear roof sun blind motor -3- .
1. 2.1 Insert bracket for rear roof sun blind motor -3- and position drive cables for the sun blind in the guides.
2. 2.2 Screw in and tighten screws -2- > Tightening torque 2 Nm (1.5 ftlb.)
3. 2.3 Screw in and tighten screws -1- > Tightening torque 2.5 Nm (2 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bracket for rear roof sun blind motor
