Removing Rear Roof Sun Blind: Notes

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2023 Porsche Panamera, 2022 Porsche Panamera, 2021 Porsche Panamera, 2020 Porsche Panamera, and 2019 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Information

Some of the repair illustrations show only one side of the vehicle .
Also complete certain steps on the opposite side of the vehicle as well .

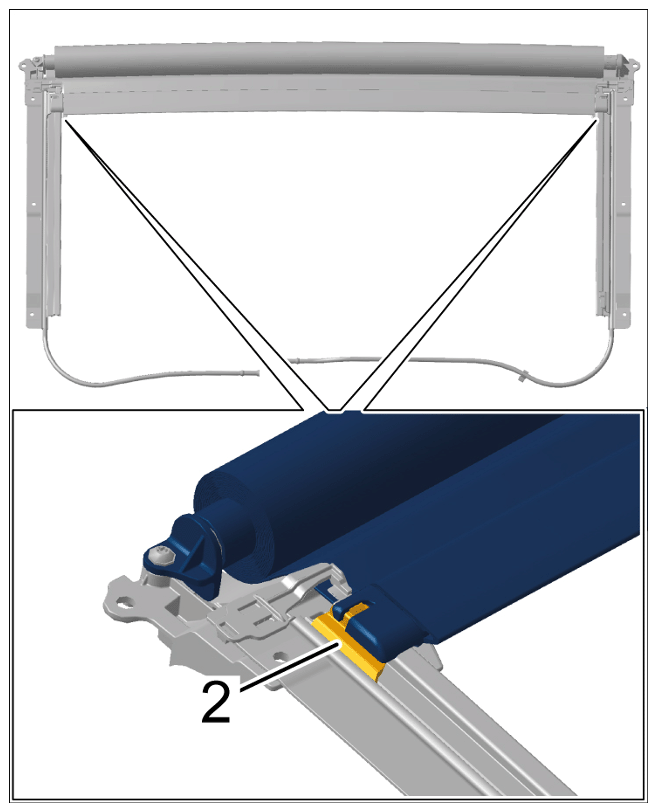

Unclip rear roof sun blind.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unclipping rear roof sun blind
1. 1.1 Carefully lift up the clip -2- using a screwdriver.
2. 1.2 Press roof strut forward.
Pull rear roof sun blind forward manually > Length 300 mm .
Information

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

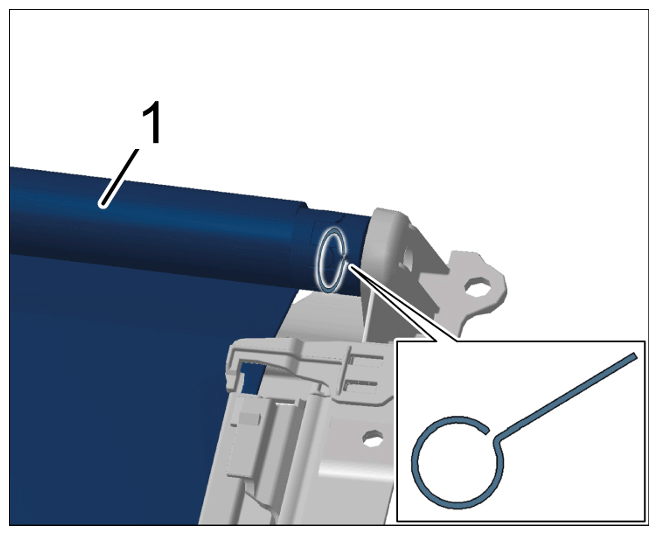

Information on locking sun blind
- When the locking pin is removed, the spring becomes loose and the sun blind -1- must be replaced .
Lock rear roof sun blind -1- using > T40011 - locking pin .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Locking sun blind

Remove guide element.

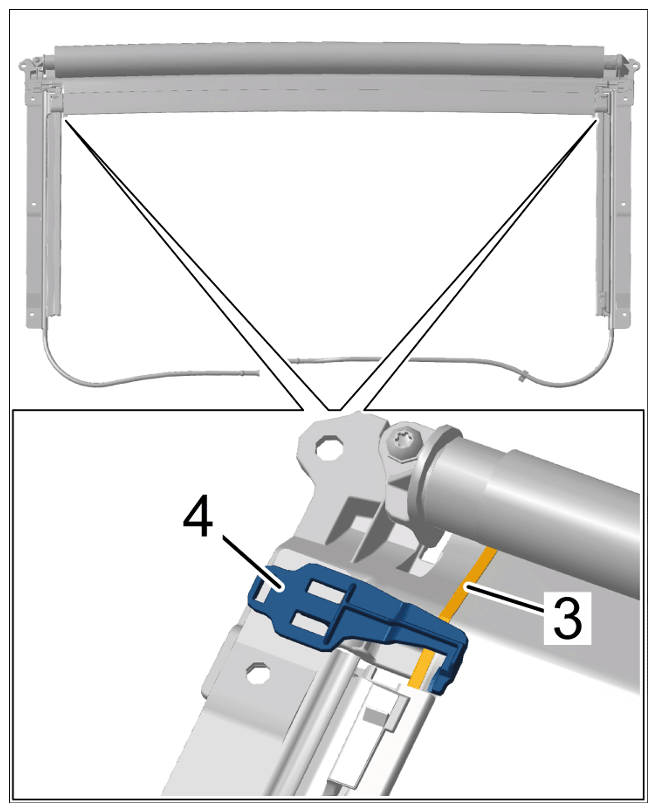

4.1 Disengage reinforced guide for sun blind -3- from guide element -4- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Disengaging reinforced guide for sun blind from guide element

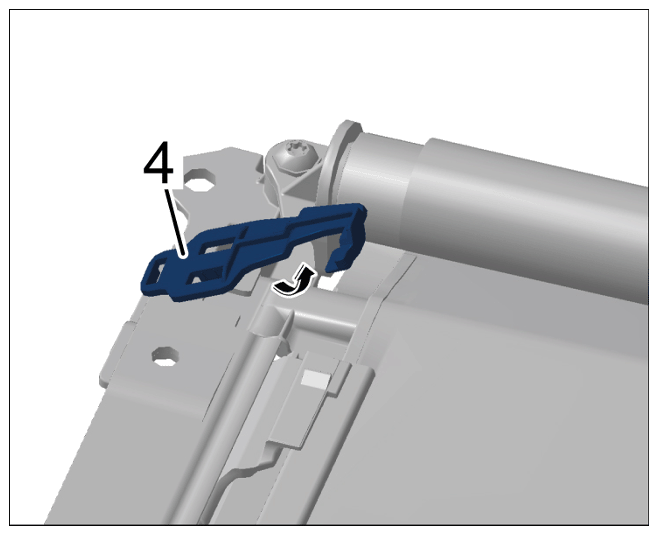

4.2 Unclip guide element -4- (-arrow- ).

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unclipping guide element

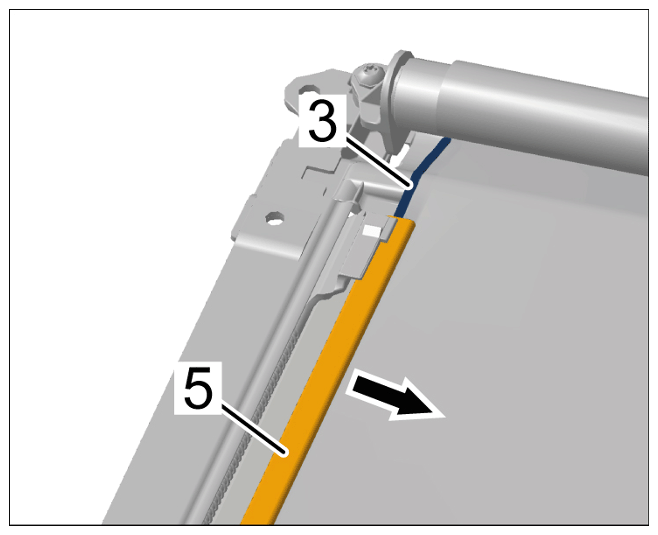

Disengage reinforced guide for sun blind -3- from guide rail -5- (-arrow- ).

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Disengaging tab on sun blind from guide rail

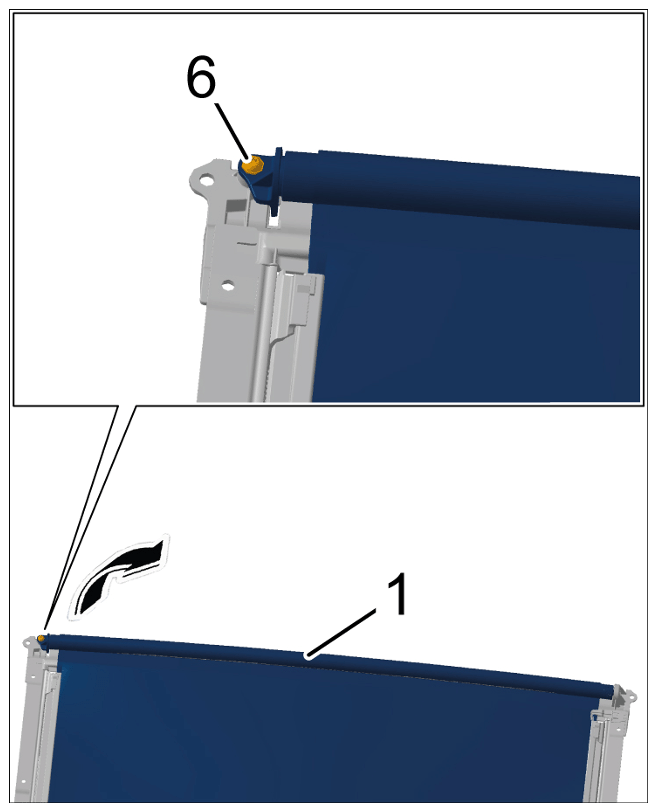

Unscrew and remove screw -6- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unscrewing screw
Lift rear roof sun blind -1- from the mounting -arrow- and remove it from the frame.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing rear roof sun blind
