Removing Front Roof Sun Blind

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2023 Porsche Panamera, 2022 Porsche Panamera, 2021 Porsche Panamera, 2020 Porsche Panamera, and 2019 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Information

Some of the repair illustrations show only one side of the vehicle .
Also complete certain steps on the opposite side of the vehicle as well .

Open the front roof sun blind fully.
Unclip front roof sun blind -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

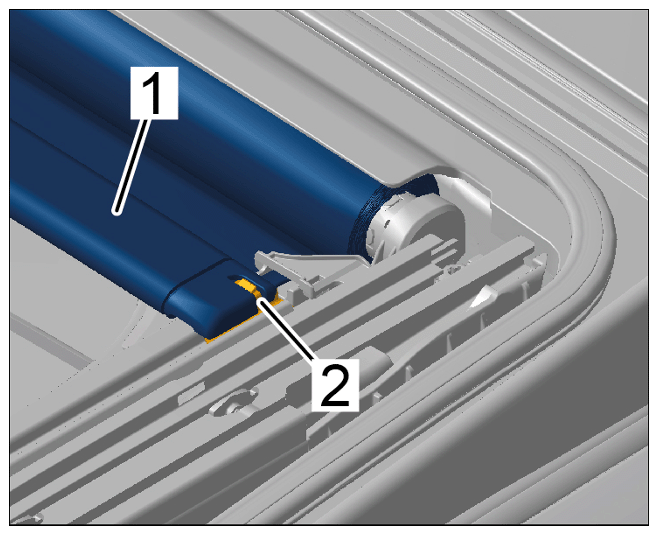

Unclipping sun blind
1. 2.1 Carefully lift up the clip -2- using a screwdriver.
2. 2.2 Press roof strut forward.
Pull front roof sun blind forward manually > Length 300 mm
Information

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

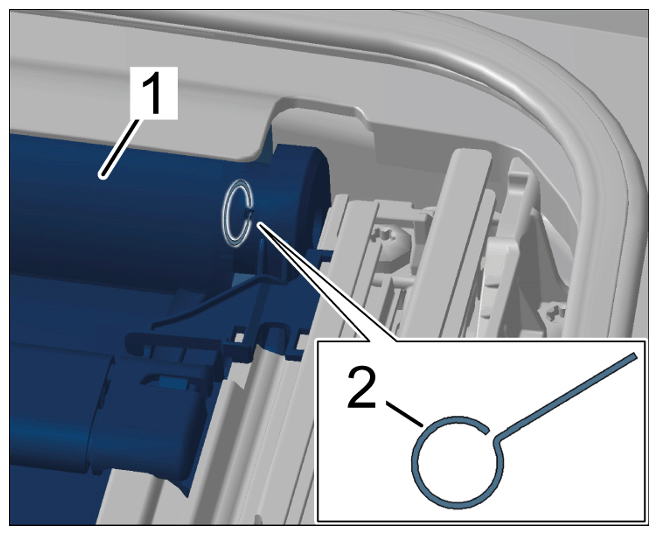

Locking sun blind
- When the locking pin -2- is removed, the spring becomes loose and the front roof sun blind -1- must be replaced .
Lock front roof sun blind -1- using > T40011 - locking pin -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Locking sun blind
Tilt the sun blind in the guide rail and disengage it.

Remove guide element.

6.1 Disengage reinforced guide for sun blind -3- from guide element -4- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

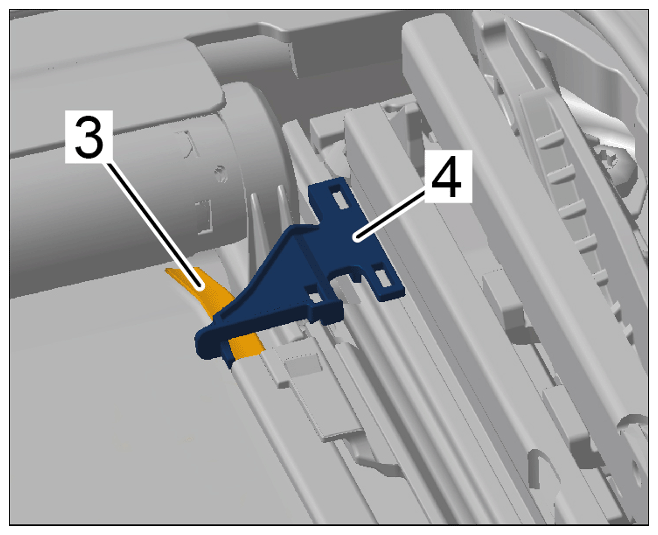

Disengaging reinforced guide for sun blind

6.2 Unclip guide element -4- (-arrow- ).

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

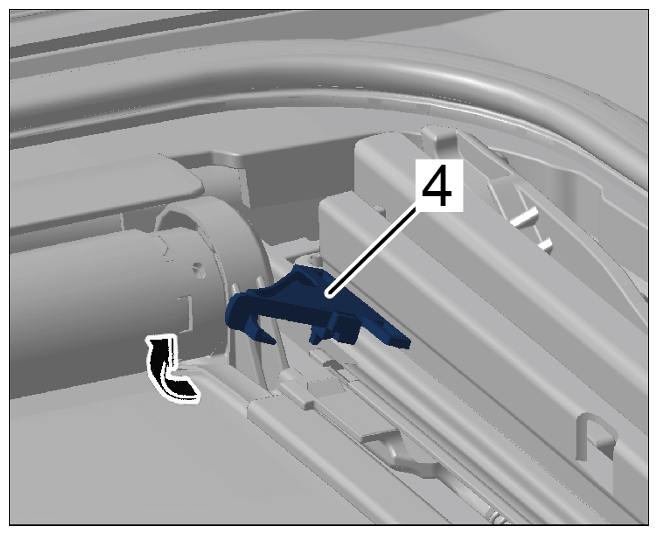

Unclipping guide element

6.3 Push guide element -4- to the rear and remove it.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

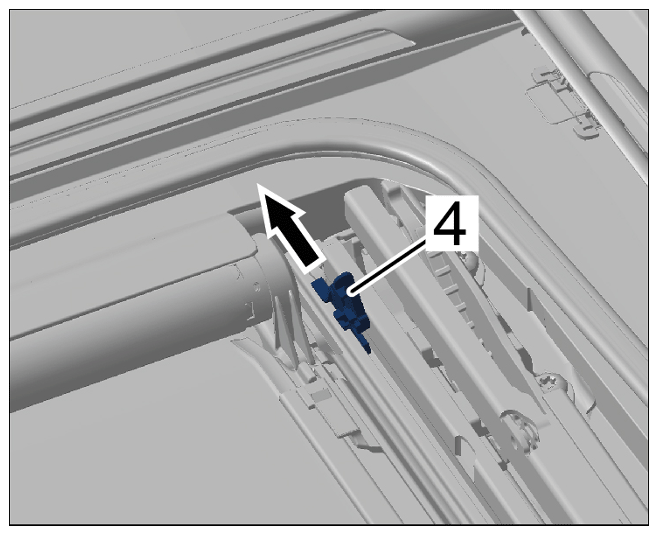

Pushing guide element to the rear

Disengage reinforced guide for sun blind -3- from guide rail -5- (-arrow- ).

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

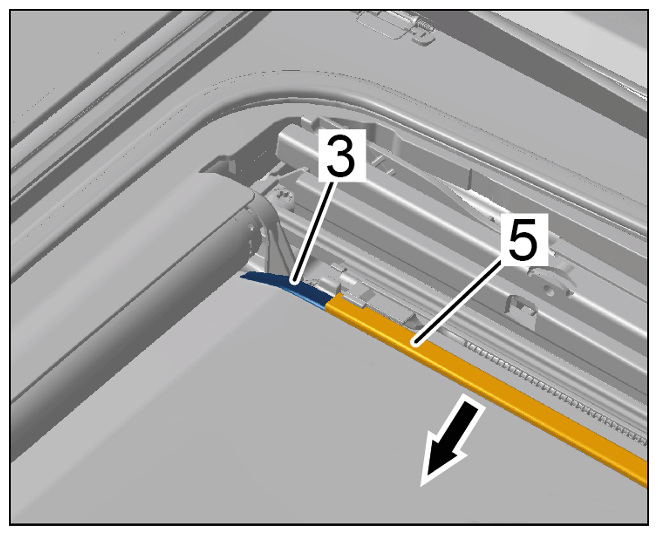

Disengaging reinforced guide for sun blind
Unscrew and remove screw -6- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

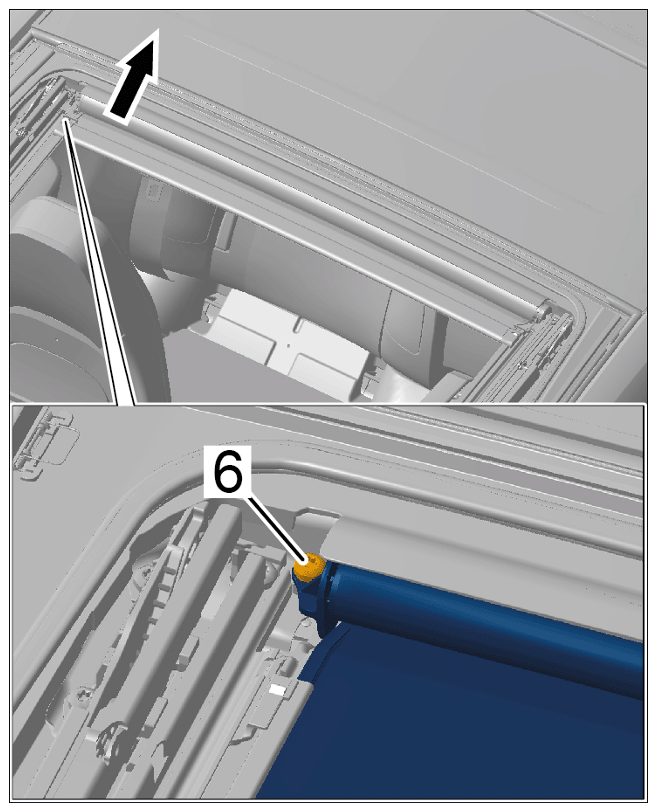

Unscrewing screw
Lift front roof sun blind at the right out of the housing -arrow- and remove it from the frame.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing front roof sun blind
